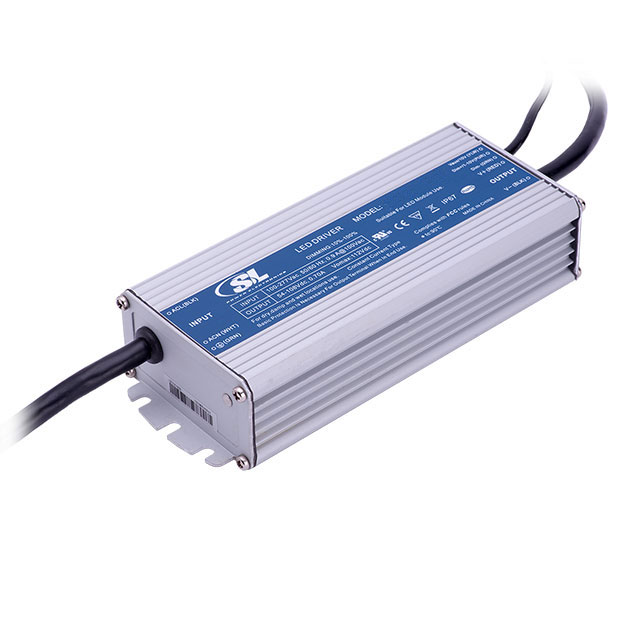

LE75S70CD图片1
LE75S70CD图片2
LE75S70CD图片3

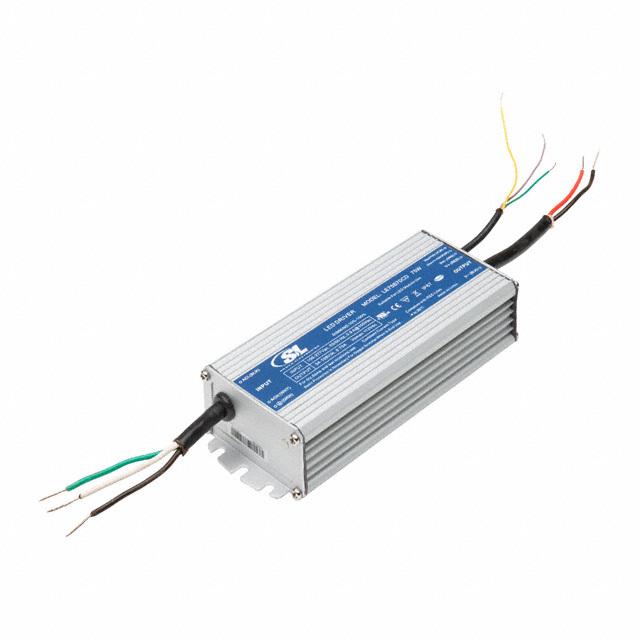

LE75S70CD图片4
LE75S70CD图片5
LE75S70CD图片6
LE75S70CD图片7
LE75S70CD图片8
LE75S70CD图片9
LE75S70CD概述

SL POWER CONDOR LE75S70CD, LED 驱动器, 54 → 108V, 665 → 735mA, 75W

The LE75S-CD Series are constant current mode LED Driver power supplies that operate from a wide range input of 90 to 305 Vac. These models provide up to 2.8 A of output current, at a maximum output voltage of 108 Vdc, at up to 75 W output power. The LE75S-CD series are highly efficient and highly reliable. Features include dimming control, overvoltage protection, short circuit protection, and overtemperature protection.

* High Efficiency up to 91%

* Wide Range Universal Input 90-305 VAC

* Active Power Factor Correction 0.99 typical

* Constant Current Output

* Dimming Function

* Lightning Protection

* Waterproof IP67

* Overcurrent, Overvoltage, Overtemperature Protection

* Meets UL8750 and EN61347 Safety

* Compliant to ANSI/IEEE C62.41, Class A

* 3-Year Warranty

LE75S70CD中文资料参数规格
技术参数

额定功率 75 W

输出接口数 1

输出电压 54V ~ 108V

输出电流 0.735 A

输出功率 80 W

输入电压Max 305 VAC

输入电压Min 90 VAC

输出电流Max 735 mA

工作温度Max 70 ℃

工作温度Min -35 ℃

输入电压 100VAC ~ 305VAC

封装参数

安装方式 Panel

引脚数 8

外形尺寸

长度 5.91 in

宽度 2.66 in

高度 1.46 in

物理参数

重量 771.1 g

工作温度 -35℃ ~ 75℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买LE75S70CD
型号: LE75S70CD
制造商: SL Power 晟朗电子电力
描述:SL POWER CONDOR LE75S70CD, LED 驱动器, 54 → 108V, 665 → 735mA, 75W
