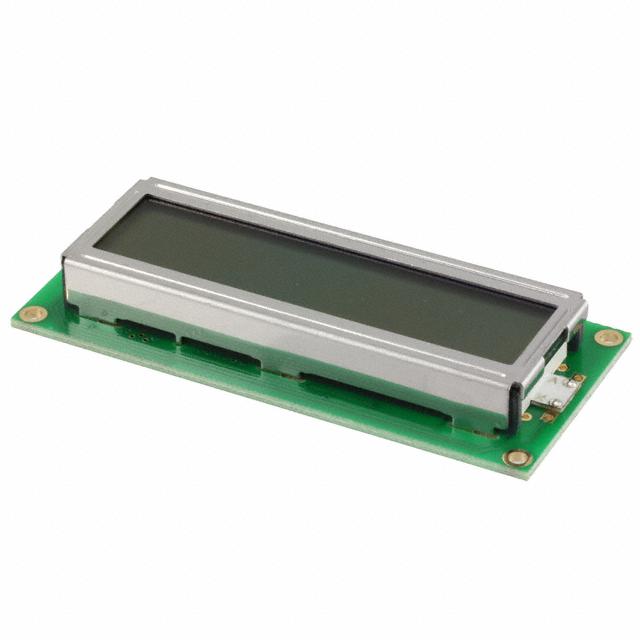

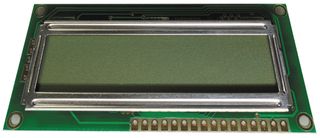

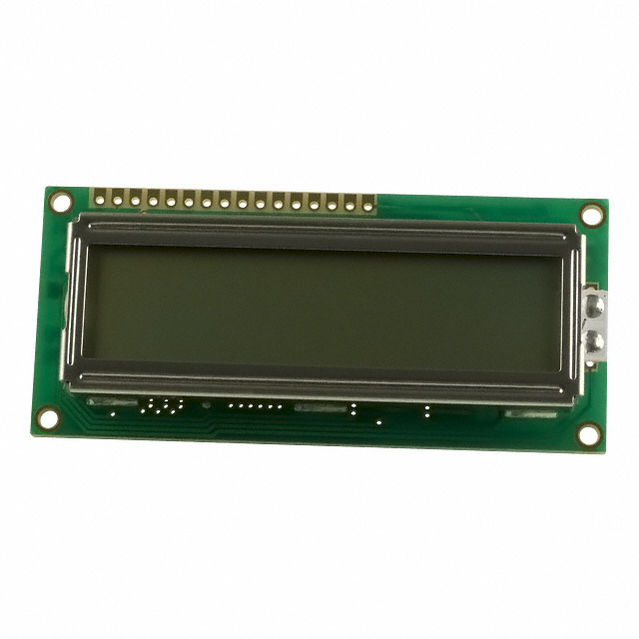

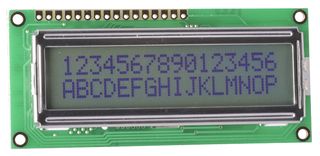

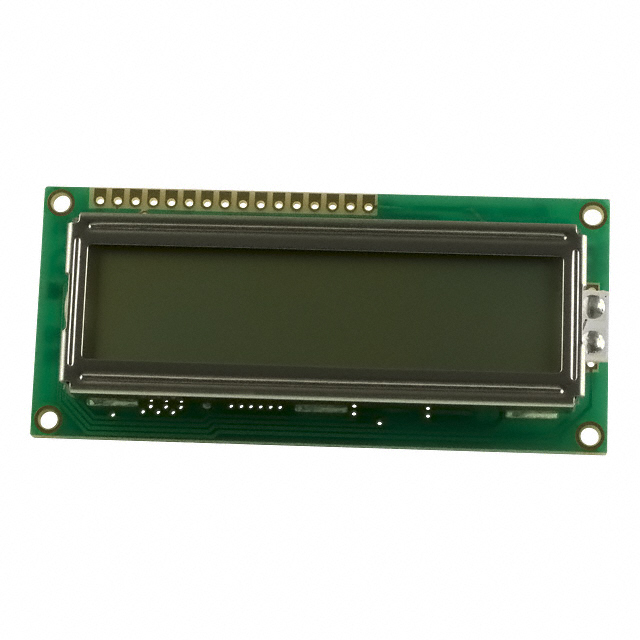

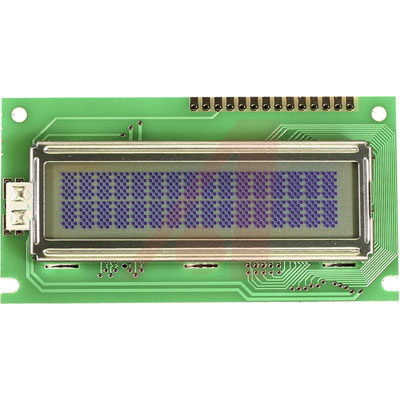

LUMEX LCM-S01602DSF/A. 点阵式液晶显示屏, 16X2
**Applications:
**
* Audio Equipment Home/Office**
**
* Consumer Items Watches, Calculators, Radio, Toys**
**
* Automotive Dash Panels**
**
* Medical Equipment**
**
* Security Electronics**
**
* Military Control Panels**
**
* Testing Equipment
得捷:
LCD MOD 32DIG 16X2 TRANS YLW/GRN
e络盟:
字母数字液晶屏, InfoVue, 16 x 2, 黄绿底黑色字, 5 V, 并行, 英式, 日式, 半透反射
艾睿:
Character Display STN Transflective 16Char x 2Line Bulk
Allied Electronics:
Module; LCD; 16 x 2 mm; 5 x 8; 5 V Typ.; 2 mA Typ.; 4.2 V @ 50 ° C Mi
Verical:
Character Display STN Transflective 16Char x 2Line Bulk
Newark:
# LUMEX LCM-S01602DSF/A Alphanumeric LCD, InfoVue, 16 x 2, Black on Yellow / Green, 5V, Parallel, English, Japanese
MASTER:
Character Display STN Transflective 16Char x 2Line Bulk
Online Components:
Character Display STN Transflective 16Char x 2Line
Electro Sonic:
Character Display STN Transflective 16Char x 2Line Bulk
电源电压DC 5.00 V
高度尺寸特征 5.56 mm
工作温度Max 50 ℃
工作温度Min 0 ℃
电源电压 5 V
输入电压 2.2 V
安装方式 Through Hole
长度 80.0 mm
宽度 36.0 mm
高度 12.7 mm
工作温度 0℃ ~ 50℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, 测试与测量, 安全, 医用, Industrial, Safety, Communications & Networking, Test & Measurement, 通信与网络, Security, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8531200020
