LQW18AN72NG00D

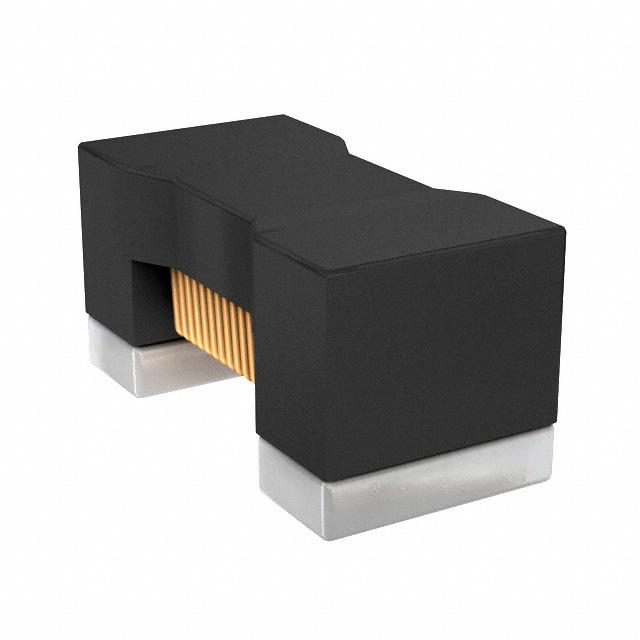

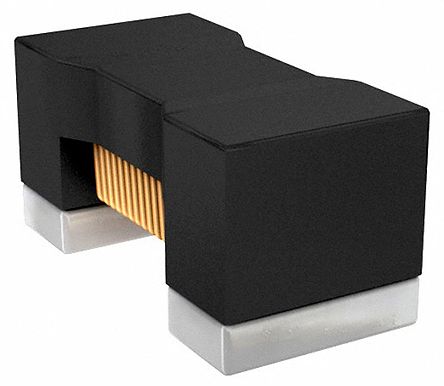

MURATA  LQW18AN72NG00D  表面贴装高频电感器, LQW18A_00系列, 72 nH, ± 2%, 0603 [1608 公制], 2.1 GHz, 0.56 ohm

固定器

得捷:
FIXED IND 72NH 270MA 560MOHM SMD

立创商城:
72nH ±2% 560mΩ

欧时:
Murata LQW18A 系列 铁氧体芯材 72 nH 绕线贴片电感器 LQW18AN72NG00D, ±2%容差, 270mA Idc Q:34

e络盟:
高频电感器, 72 nH, LQW18A_00系列, 270 mA, 0603 [1608 公制], 绕线, 0.56 ohm

艾睿:
This rf chip LQW18AN72NG00D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 72n H. This product is 1.8 mm long, 1 mm tall and 1 mm deep. This device utilizes wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.1G Hz. This SMD inductor has a maximum DC current of 270m A with a maximum resistance of 560m Ohm. It has a tolerance of 2%.

安富利:
Ind RF Chip Wirewound 72nH 2% 100MHz 34Q-Factor 270mA 0603 Paper T/R

富昌:
LQW18 Series 0603 72 nH ±2 % 270 mA 0.56 Ohm SMT Unshielded Wirewound Inductor

Chip1Stop:
Inductor RF Chip Wirewound 72nH 2% 100MHz 34Q-Factor 270mA 560mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.072uH 2% 100MHz 34Q-Factor Non Magnetic 0.27A 0.56Ohm DCR 0603 T/R

Win Source:
FIXED IND 72NH 270MA 560 MOHM
