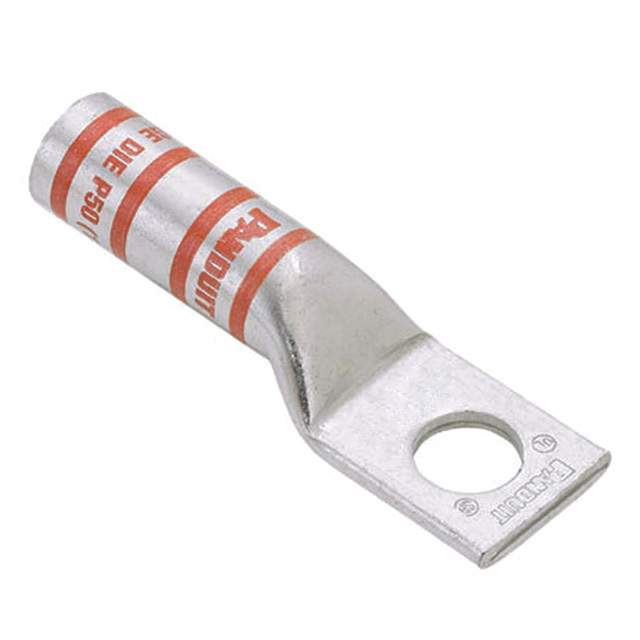

端子 Copp Comp Lug 1 Hole #2 AWG
PANDUIT‘s reliable termination solutions provide ease of identification, fast installation and optimum conductivity to meet a variety of electrical applications. PAN-LUG copper compression lugs and splices are the first and only meeting NEBS Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment. PAN-LUG Power Connectors meet and surpass the requirements of UL and CSA.
For use with Stranded Copper Conductors
Type LCA
* Color coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
* Inspection window to visually assure full conductor insertion
* Tin plated to inhibit corrosion
* UL Listed and CSA Certified to 35KV** and temperature rated to 90°C when crimped with PANDUIT and specified competitor crimping tools and dies
* UL Listed and CSA Certified for wire range-taking capability when crimped with PANDUIT® Uni-DieTM Dieless Crimping Tools
* Tested by Telcordia - meets NEBS Level 3
* American Bureau of Shipping Type Approved
