LCA3/0-38-X

LCA3/0-38-X图片1
LCA3/0-38-X图片2
LCA3/0-38-X图片3
LCA3/0-38-X图片4
LCA3/0-38-X图片5
LCA3/0-38-X图片6
LCA3/0-38-X图片7
LCA3/0-38-X图片8
LCA3/0-38-X概述

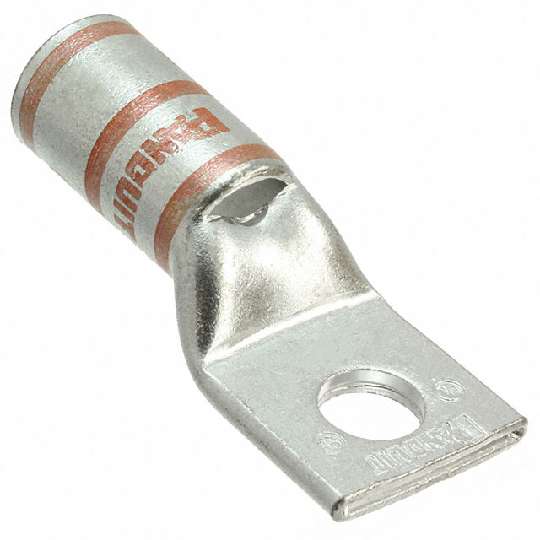

Uni-Die LCA3/0-38-X Conductor Lug 3/0 AWG CU Conductor 35kV 2.34 x 0.96in. Standard Barrel 1 Stud Hole Copper

PANDUIT‘s reliable termination solutions provide ease of identification, fast installation and optimum conductivity to meet a variety of electrical applications. PAN-LUG copper compression lugs and splices are the first and only meeting NEBS Level 3 requirements as tested by Telcordia Technologies. NEBS Level 3 assures product performance is suitable for equipment applications that demand minimal service interruptions over the life span of the equipment. PAN-LUG Power Connectors meet and surpass the requirements of UL and CSA.

For use with Stranded Copper Conductors

Type LCA

* Color coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection

* Inspection window to visually assure full conductor insertion

* Tin plated to inhibit corrosion

* UL Listed and CSA Certified to 35KV** and temperature rated to 90°C when crimped with PANDUIT and specified competitor crimping tools and dies

* UL Listed and CSA Certified for wire range-taking capability when crimped with PANDUIT® Uni-DieTM Dieless Crimping Tools

* Tested by Telcordia - meets NEBS Level 3

* American Bureau of Shipping Type Approved

LCA3/0-38-X中文资料参数规格
技术参数

工作温度Max 90 ℃

外形尺寸

长度 59.18 mm

物理参数

颜色 Orange

触点材质 Copper

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买LCA3/0-38-X
型号: LCA3/0-38-X
制造商: Panduit 泛达
描述:Uni-Die LCA3/0-38-X Conductor Lug 3/0 AWG CU Conductor 35kV 2.34 x 0.96in. Standard Barrel 1 Stud Hole Copper
