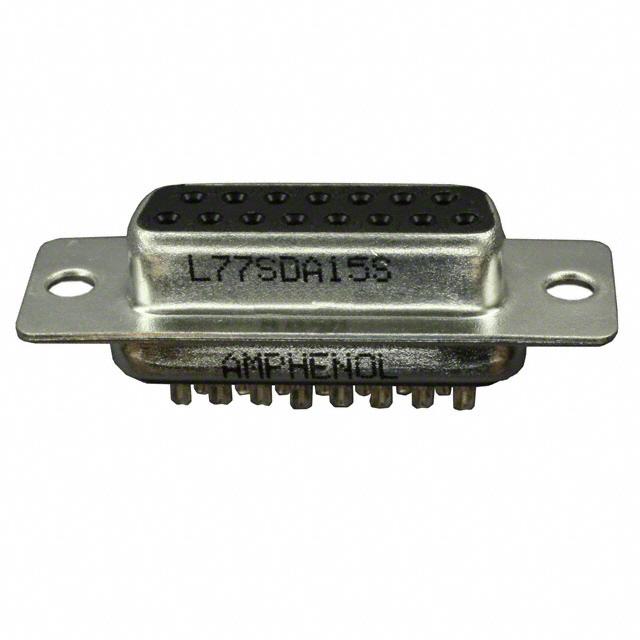

AMPHENOL COMMERCIAL PRODUCTS L77SDA15S 连接器, 标准D-SUB, 母, 15路
It"s easy to communicate between serial connections by using the DVI connector from . This socket type connector"s 15 contacts that are made out of bronze and plated with gold. It has a straight body orientation. This 2-row connector has a single port. This device has a maximum current rating of 5 A. L77SDA15S is housed in thermoplastic. This DVI connector has an operating temperature of -55 to 105 °C. This product is 39.1 mm long, 12.55 mm tall and 15.65 mm deep. Its 15 terminals use the solder cup termination method.
触点数 15
极性 Female
触点电镀 Gold Flash
额定电流 5 A
排数 2
针脚数 15
额定电流Max 5 A
额定电压Max 250 VAC
额定电压 250 V
工作电压Max 250 VAC
安装方式 Solder
引脚数 15
封装 throughHole
长度 39.1 mm
宽度 15.65 mm
高度 12.55 mm
封装 throughHole
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 155℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
L77SDA15S Amphenol 安费诺 | 当前型号 | 当前型号 |
3-106506-2 泰科 | 功能相似 | L77SDA15S和3-106506-2的区别 |
1-106506-2 泰科 | 功能相似 | L77SDA15S和1-106506-2的区别 |
D15S24A4GV00LF 法马通 | 功能相似 | L77SDA15S和D15S24A4GV00LF的区别 |
