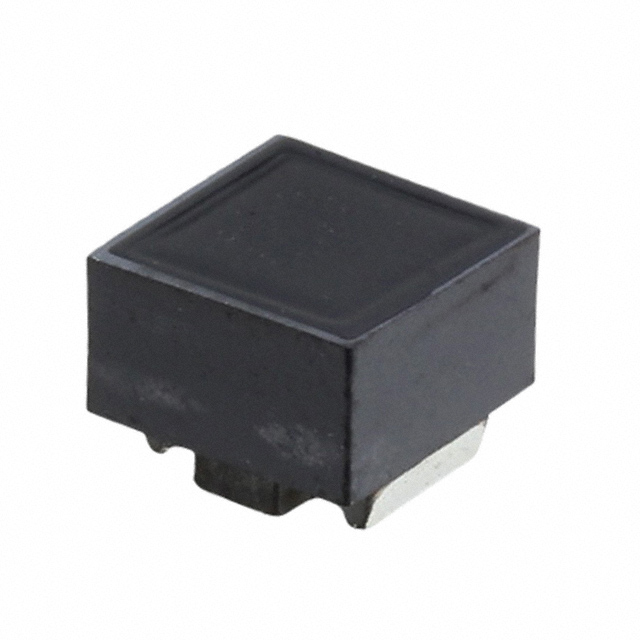

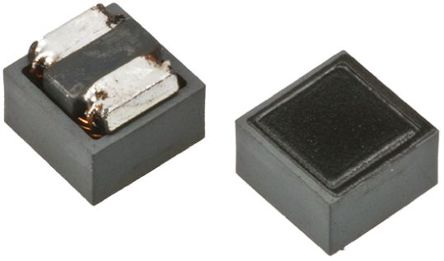

MURATA LQH66SN4R7M03L 表面贴装高频电感器, LQH66S系列, 4.7 µH, ± 20%, 2525 [6363 公制], 30 MHz, 0.025 ohm
Murata 2525 LQH66S 系列磁性屏蔽线绕扼流圈
LQH66S 系列磁性屏蔽器,用于使用高性能厚线绕技术的扼流圈应用。
低直流电阻、大电流容量和大电感
高密度安装
用于直流-直流转换器和直流电源电路
### SMT 2525 电感器(扼流圈)
立创商城:
4.7uH ±20% 25mΩ
得捷:
FIXED IND 4.7UH 2.2A 35 MOHM SMD
欧时:
Murata LQH66S 系列 4.7 μH 绕线贴片电感器 LQH66SN4R7M03L, ±20%容差, 2.2A Idc, 25mΩ最大直流电阻
贸泽:
固定电感器 4.7uH 20%
e络盟:
高频电感器, 4.7 µH, LQH66S系列, 2.2 A, 2525 [6363 公制], 绕线, 0.025 ohm
艾睿:
Make any circuit look clean and compact using this power chip LQH66SN4R7M03L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 80 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes wirewound technology. It has a tolerance of 20%. This product is 6.6 mm long, 5 mm tall and 6.6 mm deep. It has an inductance of 4.7u H. This SMD inductor has a maximum DC current of 2.2 A with a maximum resistance of 35m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 30M Hz.
安富利:
Ind Power Chip Shielded Wirewound 4.7uH 20% 1MHz Ferrite 2.2A 2525 Embossed T/R
Chip1Stop:
Inductor Power Chip Shielded Wirewound 4.7uH 20% 1MHz Ferrite 2.2A 35mOhm DCR 2525 T/R
Verical:
Inductor Power Chip Shielded Wirewound 4.7uH 20% 1MHz Ferrite 2.2A 0.035Ohm DCR 2525 T/R
Newark:
# MURATA LQH66SN4R7M03L Surface Mount High Frequency Inductor, LQH66S Series, 4.7 µH, 2.2 A, 2525 [6363 Metric], Wirewound
儒卓力:
**LQH66SN 4,7uH 2200mA 20% WWT **
Win Source:
4.7μH Shielded Wirewound Inductor 2.2A 35 mOhm Max Nonstandard
额定电流 2.2 A
容差 ±20 %
电感 4.7 µH
自谐频率 30 MHz
产品系列 LQH
电阻 25.0 mΩ
共振频率 30.0 MHz
电感公差 ±20 %
测试频率 1 MHz
电阻DC) 0.025 Ω
额定电流DC 2.2 A
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.025 Ω
安装方式 Surface Mount
引脚数 2
封装 2525
长度 6.3 mm
宽度 6.3 mm
高度 4.7 mm
封装 2525
重量 0.71 g
工作温度 -40℃ ~ 80℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 350
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
