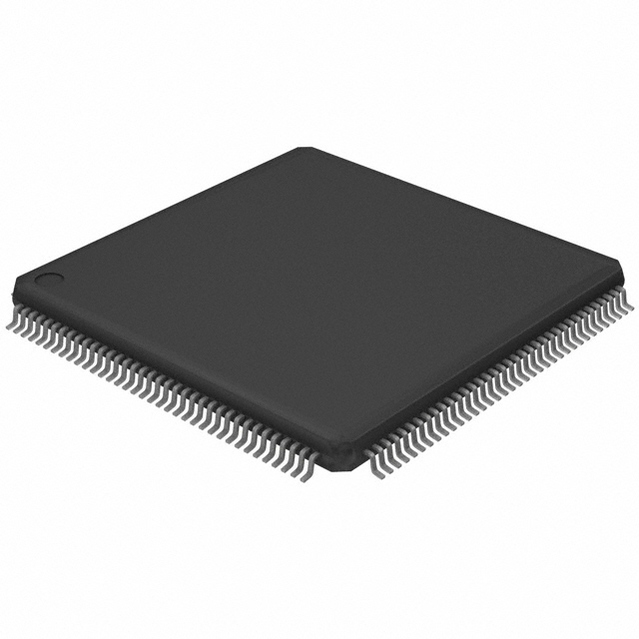

LPC2292FBD144,551图片5
LPC2292FBD144,551图片6

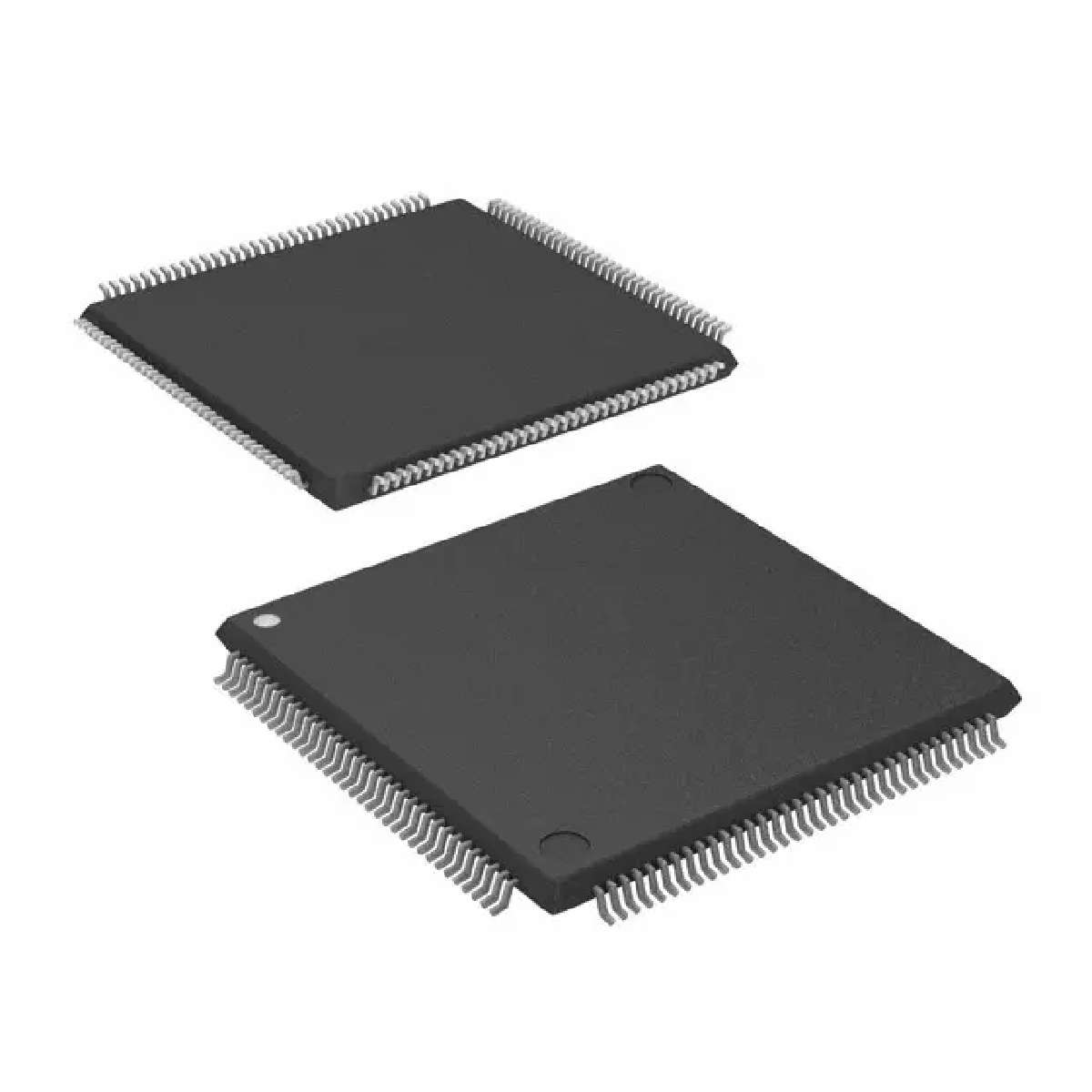

LPC2292FBD144,551图片7
LPC2292FBD144,551概述

MCU 16Bit/32Bit LPC2000 ARM7TDMI-S RISC 256KB Flash 1.8V/3.3V Automotive 144Pin LQFP Tray

Overview

The LPC2292/2294 microcontrollers are based on a 16/32-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, together with 256 kB of embedded high-speed flash memory. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.

With their 144-pin package, low power consumption, various 32-bit timers, 8-channel 10-bit ADC, 2/4 LPC2294 advanced CAN channels, PWM channels and up to nine external interrupt pins these microcontrollers are particularly suitable for automotive and industrial control applications as well as medical systems and fault-tolerant maintenance buses. The number of available GPIOs ranges from 76 with external memory through 112 single-chip. With a wide range of additional serial communications interfaces, they are also suited for communication gateways and protocol converters as well as many other general-purpose applications.

**Remark:**Throughout the data sheet, the term LPC2292/2294 will apply to devices with and without the /00 or /01 suffix. The suffixes /00 and /01 will be used to differentiate from other devices only when necessary.

MoreLess

## Features

**Key features brought by LPC2292/2294/01 devices**

* Fast GPIO ports enable port pin toggling up to 3.5 times faster than the original device. They also allow for a port pin to be read at any time regardless of its function.

* Dedicated result registers for ADCs reduce interrupt overhead. The ADC pads are 5 V tolerant when configured for digital I/O functions.

* UART0/1 include fractional baud rate generator, auto-bauding capabilities and handshake flow-control fully implemented in hardware.

* Buffered SSP serial controller supporting SPI, 4-wire SSI, and Microwire formats.

* SPI programmable data length and master mode enhancement.

* Diversified Code Read Protection CRP enables different security levels to be implemented. This feature is available in LPC2292/2294/00 devices as well.

* General purpose timers can operate as external event counters.

**Key features common for all devices**

* 16/32-bit ARM7TDMI-S microcontroller in a LQFP144 package.

* 16 kB on-chip static RAM and 256 kB on-chip flash program memory. 128-bit wide interface/accelerator enables high-speed 60 MHz operation.

* In-System Programming/In-Application Programming ISP/IAP via on-chip bootloader software. Single flash sector or full chip erase in 400 ms and programming of 256 B in 1 ms.

* EmbeddedICE-RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software as well as high-speed real-time tracing of instruction execution.

* Two/four LPC2292/2294 interconnected CAN interfaces with advanced acceptance filters. Additional serial interfaces include two UARTs 16C550, Fast I²C-bus 400 kbit/s and two SPIs.

* Eight channel 10-bit ADC with conversion time as low as 2.44 µs.

* Two 32-bit timers with four capture and four compare channels, PWM unit six outputs, Real-Time Clock RTC, and watchdog.

* Vectored Interrupt Controller VIC with configurable priorities and vector addresses.

* Configurable external memory interface with up to four banks, each up to 16 MB and 8/16/32-bit data width.

* Up to 112 general purpose I/O pins 5 V tolerant. Up to nine edge/level sensitive external interrupt pins available.

* 60 MHz maximum CPU clock available from programmable on-chip PLL with settling time of 100 µs.

* The on-chip crystal oscillator should have an operating range of 1 MHz to 25 MHz.

* Power saving modes include Idle and Power-down.

* Processor wake-up from Power-down mode via external interrupt.

* Individual enable/disable of peripheral functions for power optimization.

* Dual power supply:

* CPU operating voltage range of 1.65 V to 1.95 V 1.8 V ± 0.15 V.

* I/O power supply range of 3.0 V to 3.6 V 3.3 V ± 10 % with 5 V tolerant I/O pads.

## Features

LPC2292FBD144,551中文资料参数规格
技术参数

时钟频率 60.0 MHz

RAM大小 16K x 8

FLASH内存容量 262144 B

内存容量 256000 B

模数转换数ADC 1

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 1500 mW

封装参数

安装方式 Surface Mount

引脚数 144

封装 LQFP-144

外形尺寸

封装 LQFP-144

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Obsolete

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买LPC2292FBD144,551
型号: LPC2292FBD144,551
制造商: NXP 恩智浦
描述:MCU 16Bit/32Bit LPC2000 ARM7TDMI-S RISC 256KB Flash 1.8V/3.3V Automotive 144Pin LQFP Tray
替代型号LPC2292FBD144,551
型号/品牌 代替类型 替代型号对比

LPC2292FBD144,551

NXP 恩智浦

当前型号

当前型号

LPC2292FBD144/01,5

恩智浦

类似代替

LPC2292FBD144,551和LPC2292FBD144/01,5的区别

LPC2292FBD144/01

恩智浦

类似代替

LPC2292FBD144,551和LPC2292FBD144/01的区别

LPC2292FBD144/00

飞利浦

功能相似

LPC2292FBD144,551和LPC2292FBD144/00的区别
