LTC2602IMS8

IC DAC 16Bit DUAL R-R VOUT 8MSOP

DESCRIPTION

The LTC® 2602/LTC2612/LTC2622 are dual 16-,14- and 12-bit, 2.5V-to-5.5V rail-to-rail voltage-output DACs, in a tiny 8-lead MSOP package. They have built-in high performance output buffers and are guaranteed monotonic.

FEATURES

■ Smallest Pin-Compatible Dual DACs:

LTC2602: 16-Bits

LTC2612: 14-Bits

LTC2622: 12-Bits

■ Guaranteed 16-Bit Monotonic Over Temperature

■ Wide 2.5V to 5.5V Supply Range

■ Low Power Operation: 300µA per DAC at 3V

■ Individual Channel Power-Down to 1µA, Max

■ Ultralow Crosstalk between DACs 30µV

■ High Rail-to-Rail Output Drive ±15mA

■ Double-Buffered Data Latches

■ Pin-Compatible 10-Bit Version LTC1661

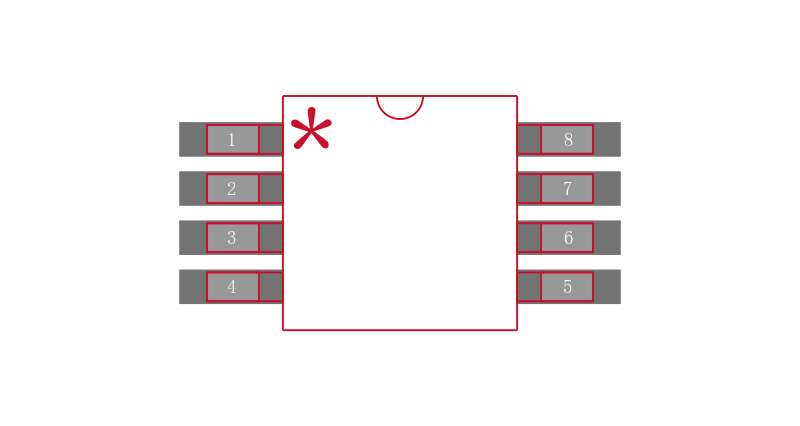

■ Tiny 8-Lead MSOP Package
