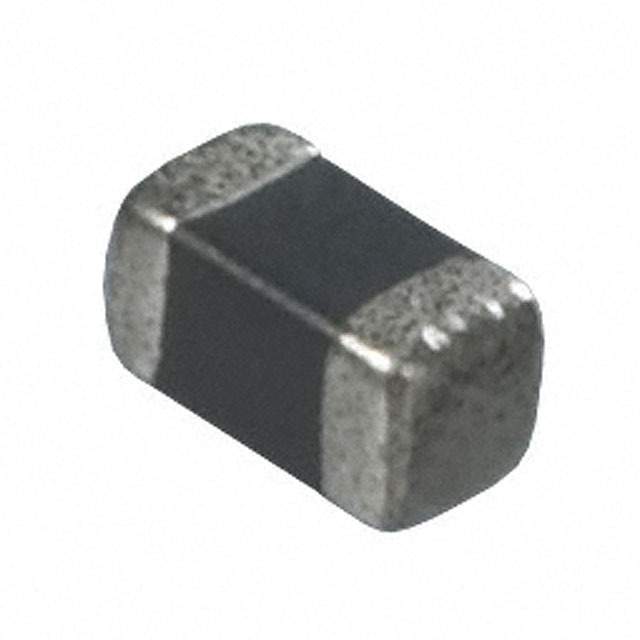

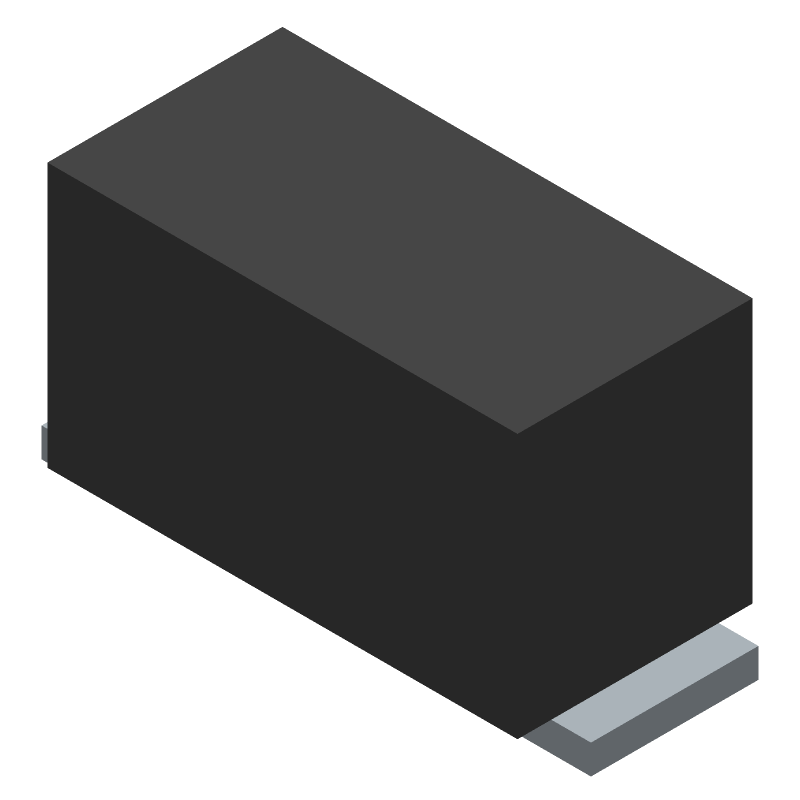

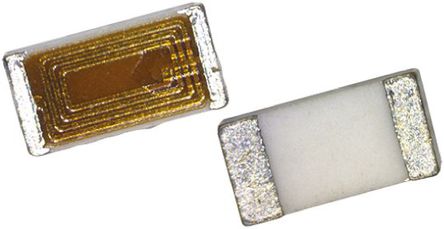

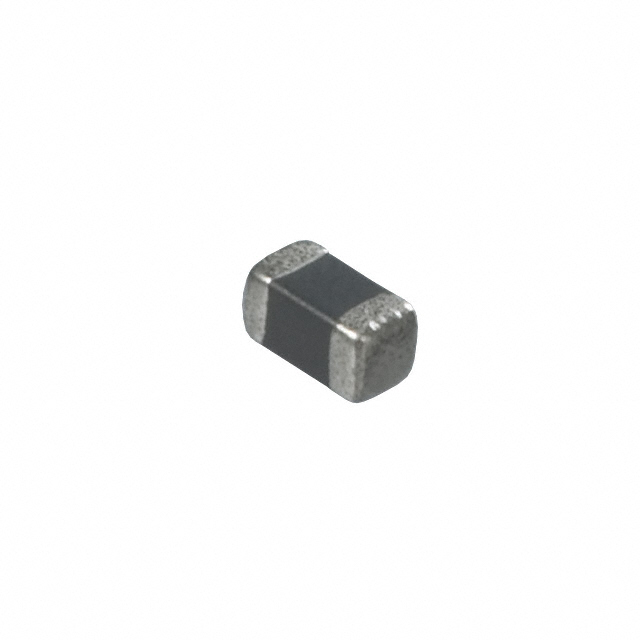

LQM18FN4R7M00D

0603 - LQP18F 系列多层片式电感器LQP18F 超小型薄型片式电感器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。 高频率范围时的高 Q 由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信设备）中提供稳定的电感 ### 应用：-移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。 移动电话 “蓝牙” W-LAN 一般高频电路 ### SMT 0603 电感器（扼流圈）

固定器

得捷:
FIXED IND 4.7UH 80MA 780MOHM SMD

立创商城:
4.7uH ±20% 80mA 780mΩ

欧时:
Murata LQM18F 系列 LQM18FN4R7M00D 4.7 μH ±20% 铁氧体 多层贴片式电感器, 0603 1608M封装, SRF: 50MHz

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power chip LQM18FN4R7M00D surface mount inductor from Murata is perfect for you! This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes multi-layer technology. This SMD inductor has a maximum DC current of 80m A with a maximum resistance of 780m Ohm. It has a tolerance of 20%. This product is 1.7 mm long, 0.9 mm tall and 0.9 mm deep. It has an inductance of 4.7u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 50M Hz.

安富利:
Ind Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 80mA 0603 Paper T/R

Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 80mA 780mOhm DCR 0603 T/R

Verical:
Inductor Power Chip Shielded Multi-Layer 4.7uH 20% 1MHz Ferrite 0.08A 0.78Ohm DCR 0603 T/R

儒卓力:
**LQM18FN 4,7uH 80mA 20% MLT **
