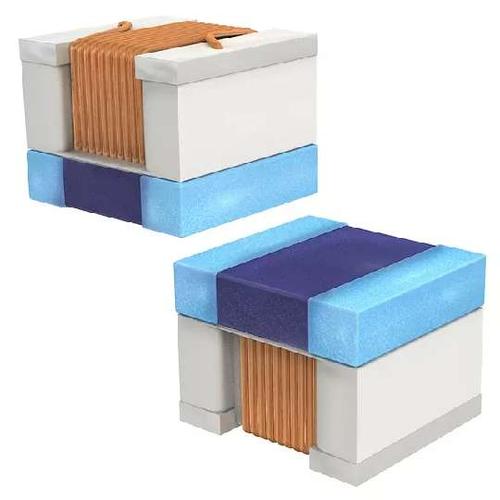

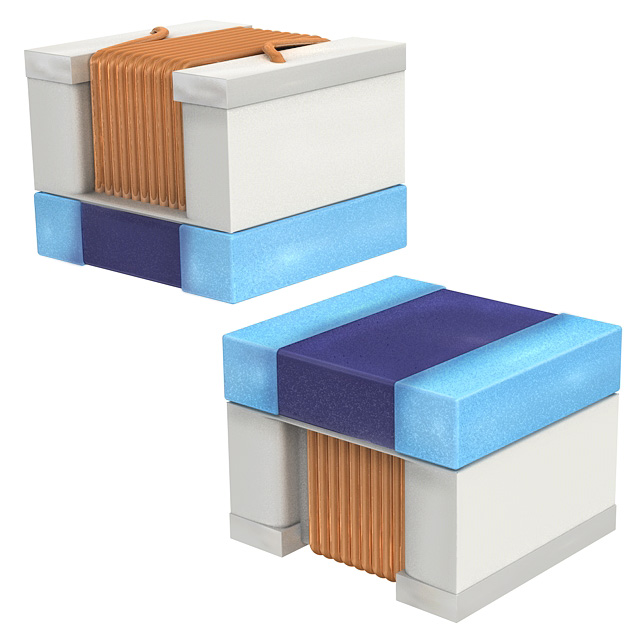

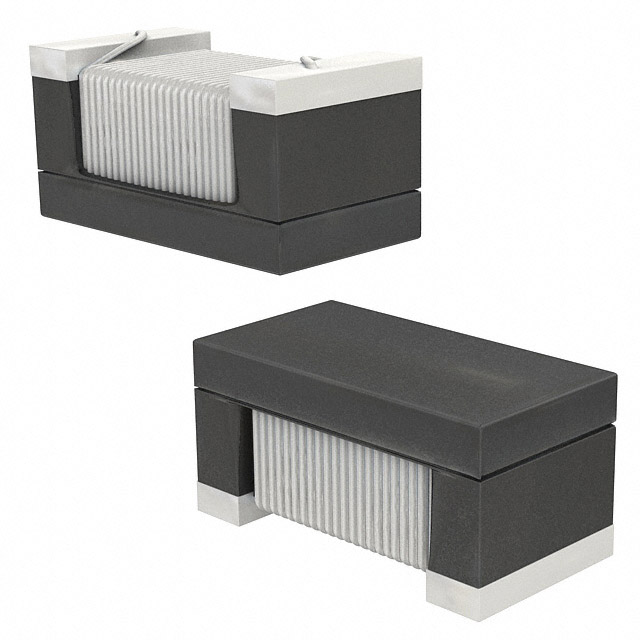

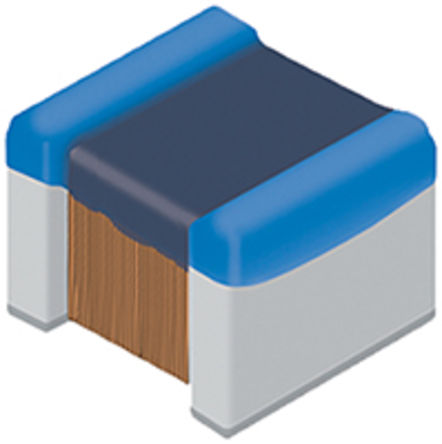

LQW2BAS47NJ00L

Murata 0805 LQW2BA 系列线绕电感器工作温度：-55→ +125°C 尺寸：2.09 x 1.53 x 1.42 mm 封装类型：0805 高 Q 型 UHF-SHF

Murata 0805 LQW2BA 系列线绕器

工作温度：-55→ +125°C

尺寸：2.09 x 1.53 x 1.42 mm

封装类型：0805

高 Q 型 UHF-SHF

得捷:
FIXED IND 47NH 500MA 310MOHM SMD

欧时:
### Murata 0805 LQW2BA 系列线绕电感器工作温度：-55→ +125°C 尺寸：2.09 x 1.53 x 1.42 mm 封装类型：0805 高 Q 型 UHF-SHF ### 表面安装 0805 电感器（扼流圈）

立创商城:
47nH ±5% 310mΩ

贸泽:
固定电感器 0805, 47nH , 500mA SRF 1700MHz, 5%

艾睿:
Use this rf chip LQW2BAS47NJ00L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 47n H. It has a tolerance of 5%. This device utilizes wirewound technology. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 310m Ohm. Its test frequency is 200M Hz, while its minimum self-resonant frequency is 1.7G Hz.

安富利:
Ind RF Chip Wirewound 47nH 5% 200MHz 60Q-Factor 500mA 0805 Embossed T/R

Chip1Stop:
Inductor RF Chip Unshielded Wirewound 47nH 5% 200MHz 60Q-Factor Ceramic 500mA 310mOhm DCR 0805 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.047uH 5% 200MHz 60Q-Factor Non Magnetic 0.5A 0.31Ohm DCR 0805 T/R

Win Source:
47nH Unshielded Wirewound Inductor 500mA 310 mOhm Max 0806 2015 Metric
