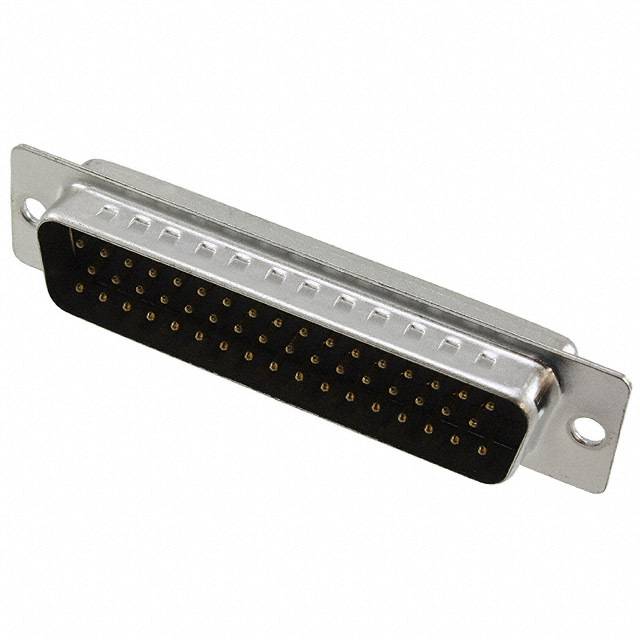

AMPHENOL L717SDD50P 连接器, D sub, 堆叠式, 17SD系列, DD, 插头, 50 触点, 金属主体, 焊接
The 17SD series Standard Density D-sub Connectors with solder cup version. It has brass, selected gold over nickel plating mating area with PBT+30% fibre-glass and steel with tin plating shell. It features precision formed contacts and insulator with closed entry contacts cavities.
- .
- Available in plug and socket connectors
- .
- UL94V-0 Flammability
- .
- 1000MR at 500VDC Insulation resistance minimum
- .
- 30mR at 100mA DC Contact resistance maximum
- .
- 5A Current rating maximum
- .
- -55 to 105°C Temperature range
触点数 50
极性 Male
触点电镀 Gold
额定电流 5 A
绝缘电阻 1000 MΩ
排数 3
针脚数 50
额定电流Max 5A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 250 VAC
额定电压 250 V
工作电压Max 250 VAC
接触电阻Max 20 mΩ
安装方式 Solder
长度 67.06 mm
宽度 15.3 mm
高度 15.37 mm
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tray
制造应用 Computers & Computer Peripherals, 计算机和计算机周边, Industrial, Communications & Networking, 通信与网络, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
