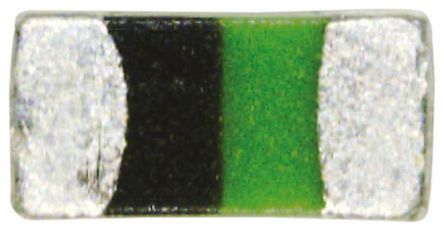

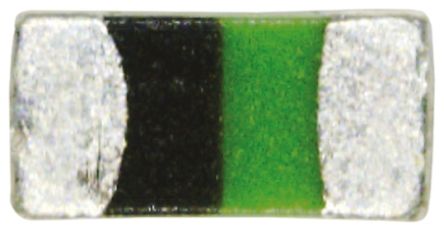

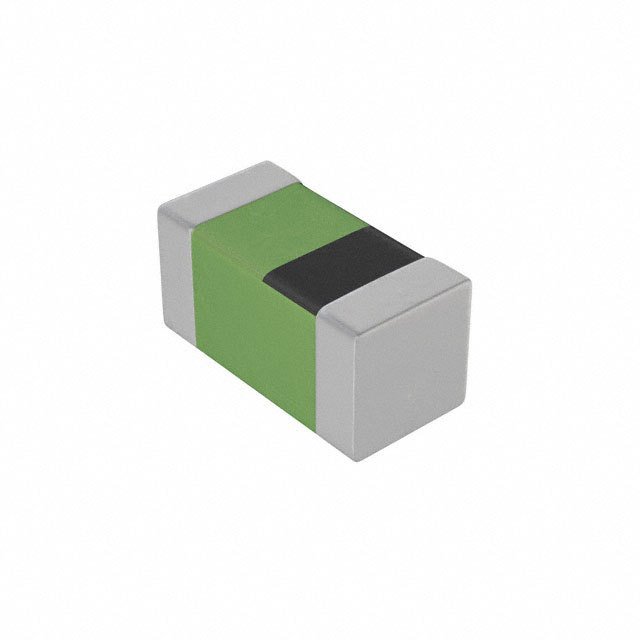

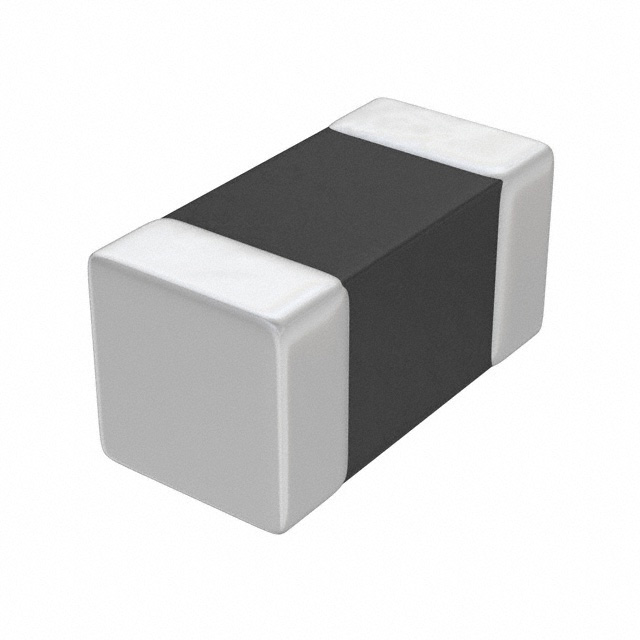

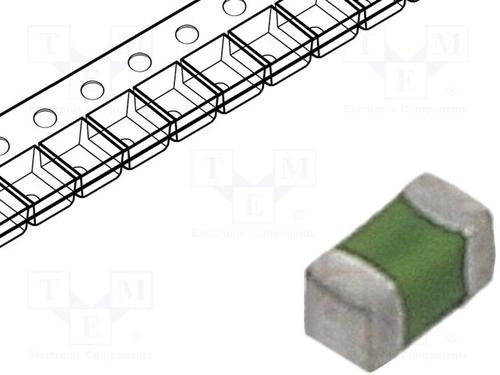

LQG15HN3N3S02D

MURATA  LQG15HN3N3S02D  表面贴装高频电感器, LQG15HN系列, 3.3 nH, ± 0.3nH, 0402 [1005 公制], 6 GHz, 0.19 ohm

固定器

得捷:
FIXED IND 3.3NH 800MA 190MOHM SM

立创商城:
3.3nH ±0.3nH 120mΩ

欧时:
### Murata 0402 LQQ15HN 系列高频片式电感器Murata LQG15HN SMD 电感器具有多层结构。 尽管 Q 系数比线绕等效产品低，在诸多产品中，其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。 LQGH15HS SMD 电感器高度可靠，且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。可用于高频率电路 高频率时具有极佳的稳定性 单片结构 ![http://china.rs-online.com/largeimages/L0105849-10.jpg]http://china.rs-online.com/largeimages/L0105849-10.jpg ### 表面安装 0402 电感器（扼流圈）

贸泽:
Fixed Inductors 3.3 NH +-.3NH

e络盟:
高频电感器, 3.3 nH, LQG15HN系列, 300 mA, 0402 [1005 公制], 多层, 0.19 ohm

艾睿:
This rf chip LQG15HN3N3S02D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 120m Ohm. This device utilizes multi-layer technology. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. It has an inductance of 3.3n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 6G Hz.

安富利:
Ind RF Chip Multi-Layer 3.3nH 0.3nH 100MHz 8Q-Factor Air 300mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Multi-Layer 3.3nH 0.3nH 100MHz 8Q-Factor Air 300mA 190mOhm DCR 0402 T/R

TME:
Inductor: ceramic; SMD; 0402; 3.3nH; 800mA; 0.12Ω; Q:8; ftest:100MHz

Verical:
Inductor RF Chip Unshielded Multi-Layer 3.3nH 0.3nH 100MHz 8Q-Factor Ceramic 800mA 120mOhm DCR 0402 T/R

Newark:
# MURATA  LQG15HN3N3S02D  Surface Mount High Frequency Inductor, LQG15HN Series, 3.3 nH, 300 mA, 0402 [1005 Metric]

儒卓力:
**LQG15HN 0,003uH 300mA 0,3nH MLT **

Win Source:
3.3nH Unshielded Multilayer Inductor 300mA 190 mOhm Max 0402 1005 Metric
