LC03-3.3

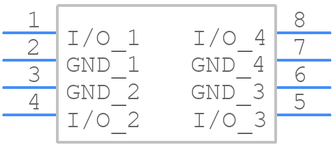

SEMTECH  LC03-3.3  TVS二极管, TVS, LC03系列, 3.3 V, 18 V, SOIC, 8 引脚

The LC03 series low capacitance 3.3V TVS Diode for high speed interfaces. It is designed to protect components which are connected to high speed data and telecommunication lines from voltage surges caused by lightning, electrostatic discharge ESD and electrical fast transients EFT. It is ideal for use as board level protection of sensitive semiconductor components. The device combines a TVS diode with a rectifier bridge to provide transient protection in both common and differential mode with a single device. It utilizes Semtech"s EPD technology for superior electrical characteristics at 3.3V. The capacitance of the device is minimized to ensure correct signal transmission on high speed lines. It meets the short-haul intra-building transient immunity requirements of Bellcore 1089 for telecommunications applications.

.

1800W Peak pulse power tp = 8/20µs

.

Protects two lines in common and differential mode

.

Low capacitance for high-speed interfaces

.

Low clamping voltage

.

Integrated structure saves board space and increases reliability

.

Solid-state EPD technology

.

-55 to 125°C Operating temperature range
