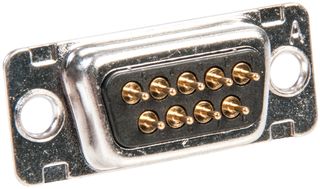

AMPHENOL L717DE09PST1 连接器, D sub, 堆叠式, D-ST系列, DE, 插头, 9 触点, 钢主体, 螺丝
The is a 9-way standard male D-sub Connector with gold-plated machined brass contacts. The D-ST series D-sub connector has DE-size tin-plated steel shell and UL94V-0 glass filled thermoplastic insulator. The screw termination D-sub series is especially designed for field applications. This connector is compatible with all standard DPPK hood.
- .
- 7.5A Current rating
- .
- 300VAC at 50Hz Voltage rating
- .
- 1000VAC at 50Hz for one minute Dielectric withstanding voltage
- .
- >5000MR at 500VDC Insulation resistance
- .
- <5mR Contact resistance
触点数 9
极性 Male
线规 18 AWG
触点电镀 Gold over Nickel
额定电压AC 300 V
额定电流 7.5 A
绝缘电阻 5000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 9
接触电阻 5.00 Ω
拔插次数 100
额定电流Max 7.5 A
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压Max 300 VAC
额定电压 300 V
接触电阻Max 5 mΩ
安装方式 Screw
长度 30.7 mm
高度 12.4 mm
颜色 Black
触点材质 Brass
材质 Steel
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, 工业, HVAC, 自动化与过程控制, 照明, Automation & Process Control, Motor Drive & Control, 电机驱动与控制, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
