LPC11U68JBD100E

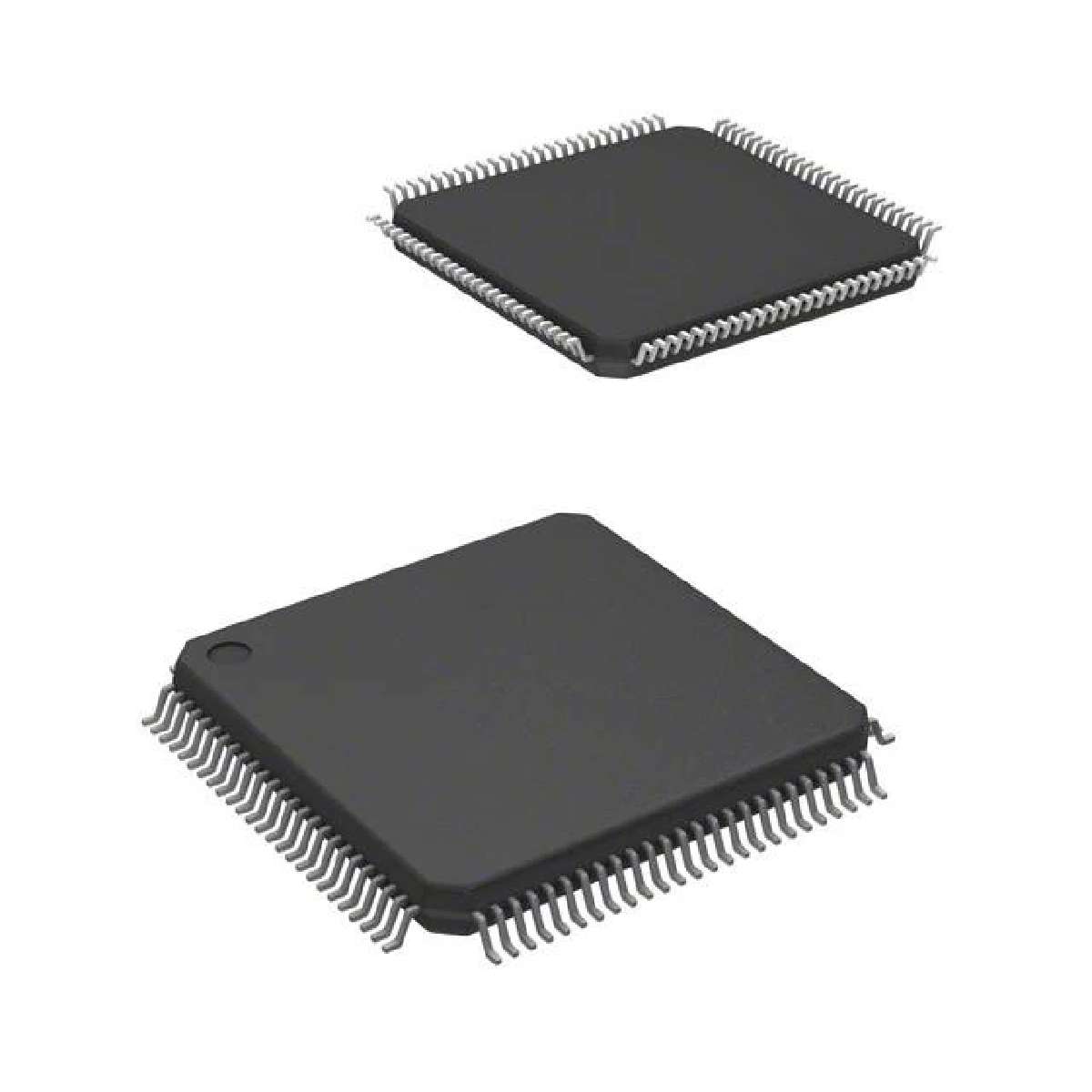

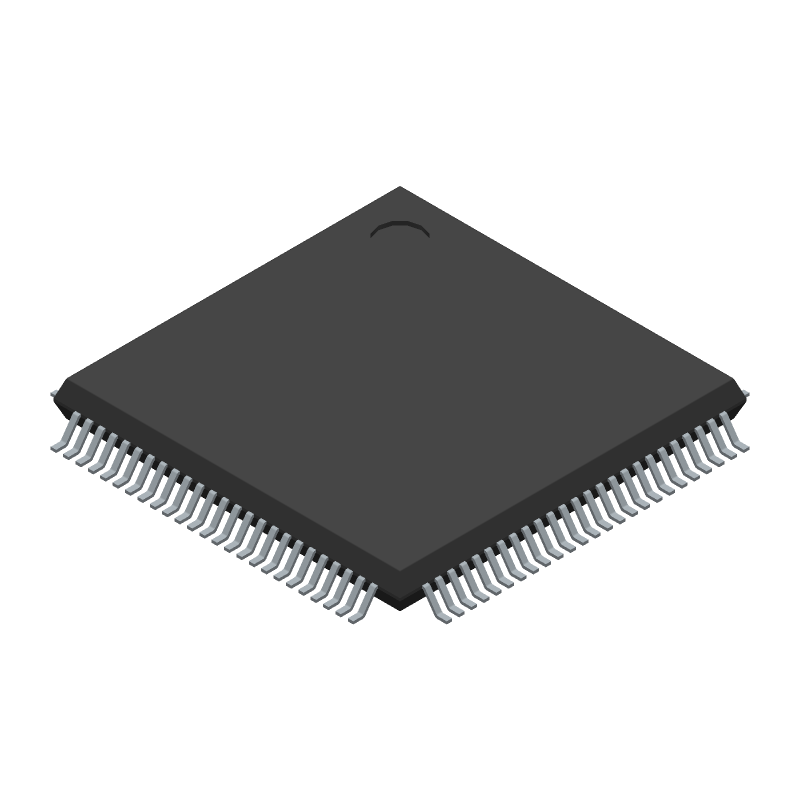

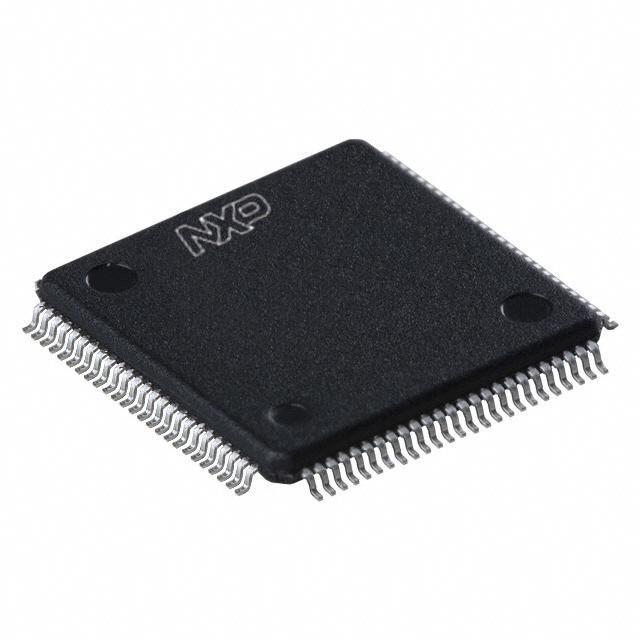

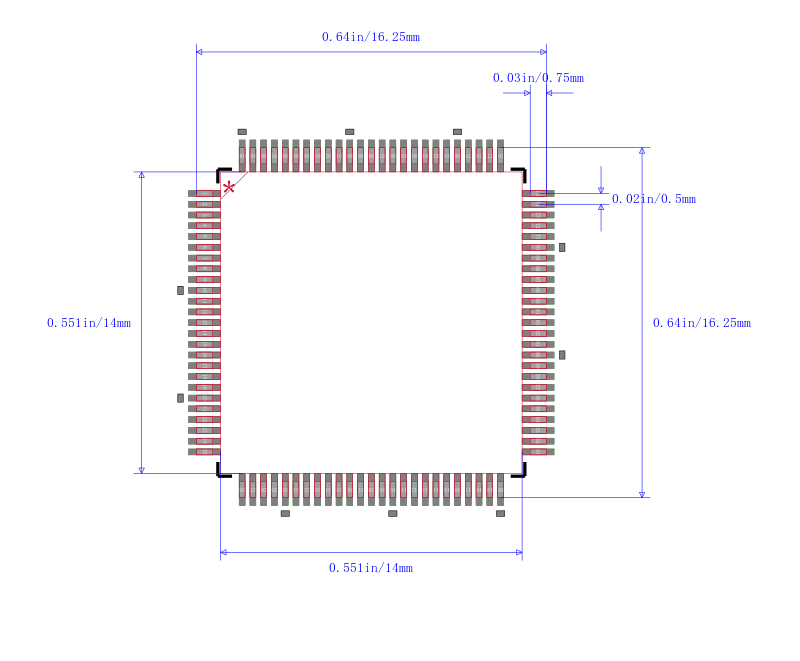

NXP  LPC11U68JBD100E.  芯片, 微控制器, 32位, CORTEX-M0+, 50MHZ, LQFP-100

The is a 32-bit Microcontroller based on ARM Cortex-M0+ core with RISC architecture operates at a maximum frequency of 50MHz. The ARM Cortex-M0+ is an easy-to-use, energy-efficient core using a two-stage pipeline and fast single-cycle I/O access. The device incorporates 256kB internal flash, 36kB internal RAM, two SSP interfaces, PWM/timer subsystem with six configurable multi-purpose timers, 12-channel 12-bit A/D converter with sample rates of up to 2Msps, full speed USB 2.0 device and 80 general-purpose I/O pins. This device also features peripherals like five USARTs and two inter-integrated circuit I2C.

.

ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller NVIC

.

AHB multilayer matrix

.

System tick timer

.

Serial wire debug SWD and JTAG boundary scan modes supported

.

Micro trace buffer MTB supported

.

Flash in-application programming IAP and In-system programming ISP

.

32-bit Integer division routines

.

Simple DMA engine with 16 channels and programmable input triggers

.

Pin interrupt and pattern match engine using eight selectable GPIO pins

.

Two GPIO group interrupt generators

.

CRC Engine

.

Windowed watchdog timer WWDT

.

Real-time clock RTC in the always-on power domain

.

USB 2.0 Full-speed device controller with on-chip PHY. XTAL-less low-speed mode supported

.

12MHz Internal RC oscillator trimmed to 1 % accuracy

.

32kHz On-chip oscillator for RTC

.

Crystal oscillator with an operating range of 1MHz to 25MHz

.

Programmable watchdog oscillator with a frequency range of 9.4kHz to 2.3MHz

.

PLL allows CPU operation up to the maximum CPU rate

.

Second, dedicated PLL is provided for USB
