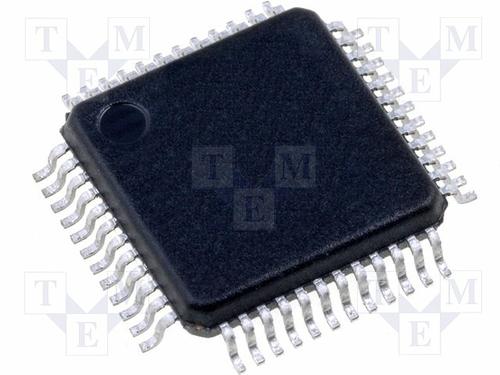

LPC1114FBD48/301

NXP  LPC1114FBD48/301  微控制器, 32位, ARM 皮质-M0, 50 MHz, 32 KB, 8 KB, 48 引脚, LQFP

The is a 32kB flash 8kB SRAM Cortex-M0 Microcontroller Unit unique on-chip API-driven power profiles which provide users with ready-to-use power management templates. The peripheral complement of the microcontroller includes 32kB of flash memory, 8kB of data memory, one fast-mode Plus I²C-bus interface, one RS-485/EIA-485 UART, two SPI interfaces with SSP features, four general purpose counter/timers, a 10-bit ADC and 42 general purpose I/O pins. It is optimized for CPU performance, CPU efficiency and lowest active current, the power profiles enable maximum operating frequency through the entire voltage range from 1.8 to 3.6V without compromising speed or functionality.

.

ARM Cortex-M0 built-in nested vectored interrupt controller

.

Serial wire debug

.

System tick timer

.

High current output driver on one pin

.

Programmable watchdog timer

.

UART with fractional baud rate generation

.

Integrated PMU to minimize power consumption

.

Power profiles residing in boot ROM
