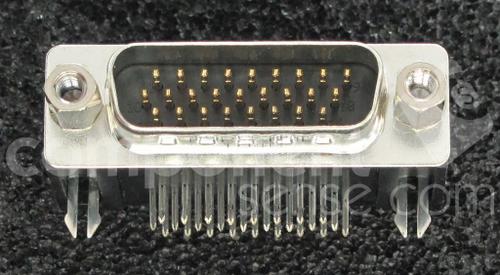

L717HDA26PD1CH4F

AMPHENOL  L717HDA26PD1CH4F  连接器, D sub, 堆叠式, 高密, HD系列, DA, 插头, 26 触点, 钢主体, 通孔安装

"s high density D-Sub connectors complement Amphenol"s extensive D-Sub connector line. The decreased contact spacing accommodates greater signal density in comparison to conventional D-Sub connectors.

.

Industrial, Telecom, Any industry standard I/O connections

.

Shells: Steel with Nickel plating

.

Insulator: Glass filled thermoplastic, UL 94V-0

.

Contacts: Copper alloy, selective Gold plating

.

Current Rating: 5A

.

Voltage Rating: 600V AC/rms 50Hz

.

Withstanding Voltage: 1000V AC/rms 50HZ for one minute

.

Insulation Resistance: 5000MR

.

Contact Resistance: 10mR Max.

.

Operating temperature range -55°C to +125°C
