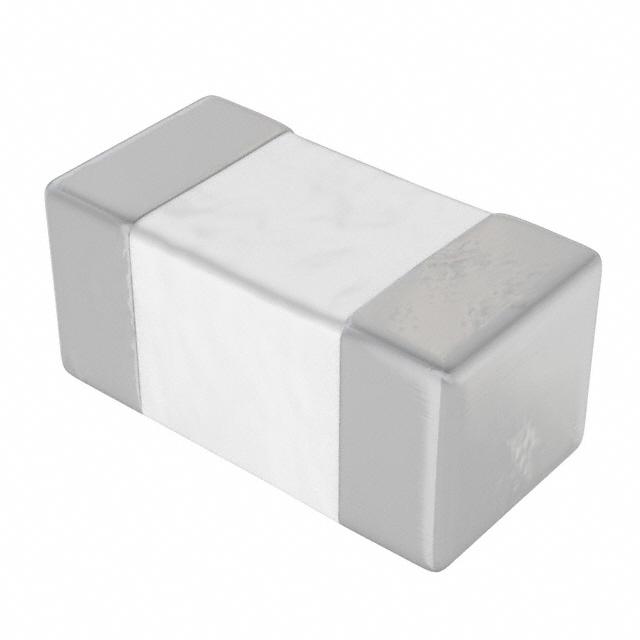

JOHANSON TECHNOLOGY L-07C1N2SV6T 表面贴装高频电感器, L-07C系列, 1.2 nH, ± 0.3nH, 0402 [1005 公制], 0.12 ohm
1.2nH Unshielded Multilayer Inductor 300mA 120mOhm Max 0402 1005 Metric
得捷:
FIXED IND 1.2NH 300MA 120MOHM SM
立创商城:
1.2nH ±0.3nH
贸泽:
Fixed Inductors 1.2nH 3%
e络盟:
高频电感器, 1.2 nH, L-07C系列, 300 mA, 0402 [1005 公制], 多层, 0.12 ohm
艾睿:
Use this rf chip L-07C1N2SV6T surface mount inductor from Johanson to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 100 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 1.2n H. This device is made with multi-layer technology. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 120m Ohm. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is &g;15GTyp Hz.
Verical:
Inductor RF Chip Multi-Layer 0.0012uH 0.3nH 100MHz 8Q-Factor Ceramic 0.3A 0.12Ohm DCR 0402 T/R
Newark:
# JOHANSON TECHNOLOGY L-07C1N2SV6T Surface Mount High Frequency Inductor, L-07C Series, 1.2 nH, 0.3nH, 0402 [1005 Metric], 0.12 ohm
RfMW:
RF MLI, 0402, 1.2nH,±0.3
额定电流 300 mA
电感 1.2 nH
自谐频率 15 GHz
Q值 8.0
电感公差 ±0.3 nH
测试频率 100 MHz
电阻DC) ≤120 mΩ
额定电流DC 300 mA
工作温度Max 100 ℃
工作温度Min 40 ℃
电阻DC Max 0.12 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.6 mm
封装公制 1005
封装 0402
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L-07C1N2SV6T Johanson Technology 约翰逊 | 当前型号 | 当前型号 |
MLK1005S1N2S 东电化 | 功能相似 | L-07C1N2SV6T和MLK1005S1N2S的区别 |
LGHK10051N2S-T 太诱 | 功能相似 | L-07C1N2SV6T和LGHK10051N2S-T的区别 |
L-07C1N2ST6T 约翰逊 | 功能相似 | L-07C1N2SV6T和L-07C1N2ST6T的区别 |
