LPT103-M

ARTESYN EMBEDDED TECHNOLOGIES  LPT103-M  交流/直流开放式电源, 医用, 可调, 固定, 80W, 5V, 13A, 15V, 4A, -15V, 1A

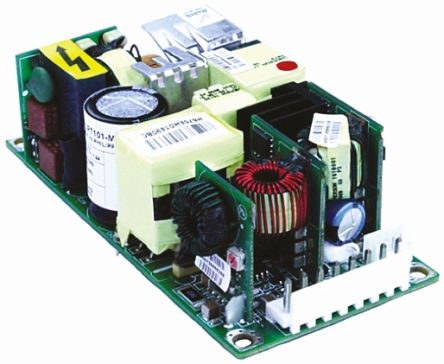

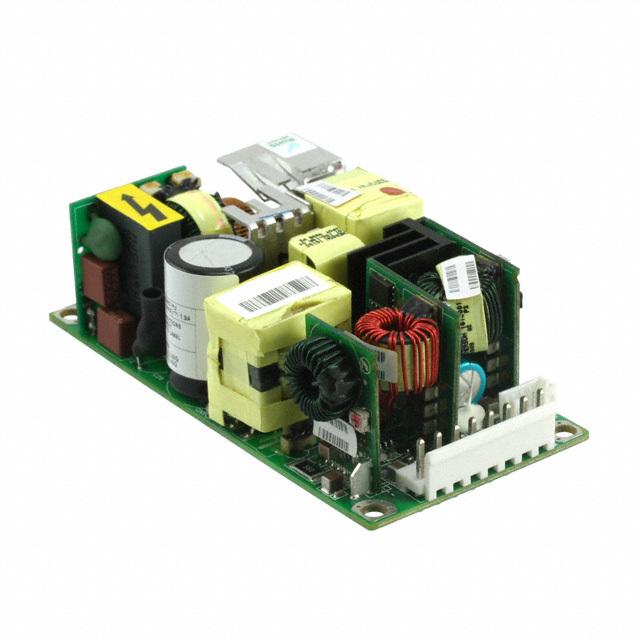

Switch Mode Medical Approved Triple Output AC/DC Power Supply - LPT100-M Series

Switch mode triple output AC/DC embedded power supplies with a low safety ground leakage current and medical and ITE approval. These switch mode AC/DC power supplies have a universal AC input, triple output voltage with an adjustable main output, active PFC, a built in EMI filter and dual AC fuses . The footprint for these AC/DC power supplies is 2" x 4" with a height of less than 1U. Suitable applications for these embedded AC/DC power supplies include information technology equipment ITE and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

Worldwide IT equipment ITE approval

Universal AC input

Active Power Factor Correction

Adjustable main output

High efficiency

Overload and overvoltage protection

Thermal overload protection

Remote sensing

Power fail

Built in EMI filter CISPR 22 Class B

Safety ground leakage current of 275ua @ 50/60 Hz; 264 VAC input

EMI//RFI Compliance: FCC Class B conducted; CISPR22 Class B conducted; EN55022 Class B conducted; VDE0878PT3 Class B conducted

Harmonic current compliance: EN61000-3-2

### 注

A connector kit is available, please see stock number 751-2610

Derate each output as 2.5% per degree from 50° to 70 °C

### 认可

UL, TUV

### 标准

TUV 60950, 60601-1, UL 60950, 60601-1, CSA 60950, 60601-1, NEMKO 60950, 60601-1, AUSTEL 60950, 60601-1, CB Certificate & report,CE Mark LVD
