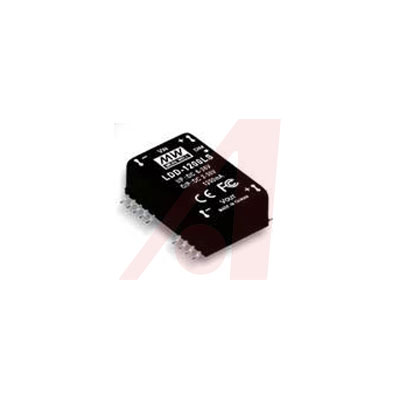

LED电源 6-36Vin 2-30V 1500mA SMT DC-DC LED Driver
* Wide Input and Output Range
* Remote ON/OFF Control
* PWM Dimming
* Short Circuit and Over Temperature Protection
* Complies with EN55015 and FCC part 15 without Additional Input Filter and Capacitors
* Fully Encapsulated IP67 for Solder Pin and Leadwire Types
* Flame Retardant UL94V-0 Plastic Case
* 3-Year Warranty
得捷:
LED DRIVER CC BUCK 2-30V 1.5A
贸泽:
LED电源 6-36Vin 2-30V 1500mA SMT DC-DC LED Driver
艾睿:
DC/DC LED Power Supply Single 18-Pin SMD
Allied Electronics:
Power Supply; DC-DC; 30V@1.5A; 6-36VIn; Encapsulated; Surface Mnt; LED Drvr; LDD Series
安富利:
LED DRVR Module 1-CH Analog/PWM IP67 30V 1.5A
TME:
Converter: DC/DC; 45W; Uin:6÷36V; Uout:2÷30VDC; Iin:1450mA; 12.8g
CDI:
DC-DC 1500mA CC IP67 Dimmable Step-Down LED Driver w SMD Style
额定功率 45 W
输出接口数 1
输出电压 30 VDC
输出电流 1500 mA
通道数 1
输入电流 1450 mA
输出功率 45 W
输入电压Max 36 V
输入电压Min 6 V
输入电压DC Max 36 V
输入电压DC Min 6 v
输出电压Max 30 V
输出电压Min 2 V
输出电流Max 1500 mA
工作温度Max 71 ℃
工作温度Min -40 ℃
输入电压 6VDC ~ 36VDC
安装方式 Surface Mount
引脚数 18
封装 SMD-24
长度 31.8 mm
宽度 20.3 mm
高度 11.4 mm
封装 SMD-24
重量 12.8 g
工作温度 -40℃ ~ 71℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 无铅
