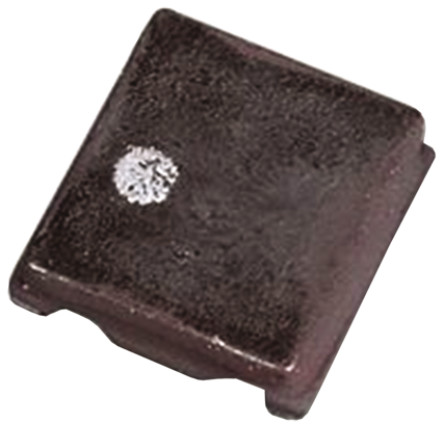

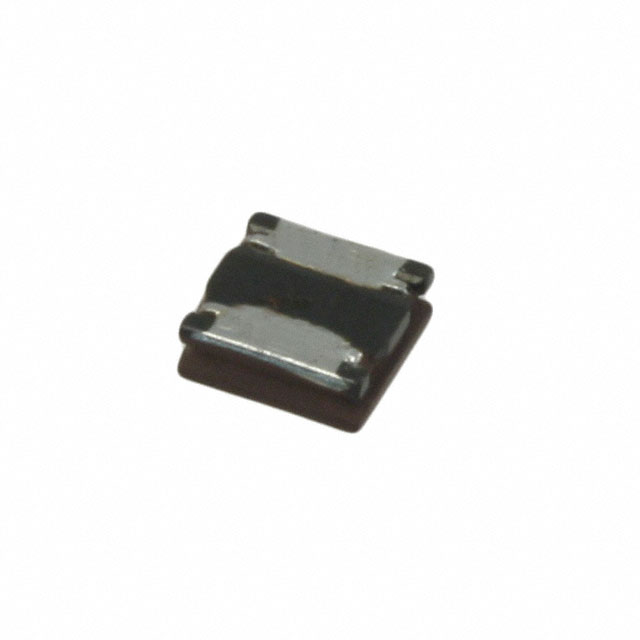

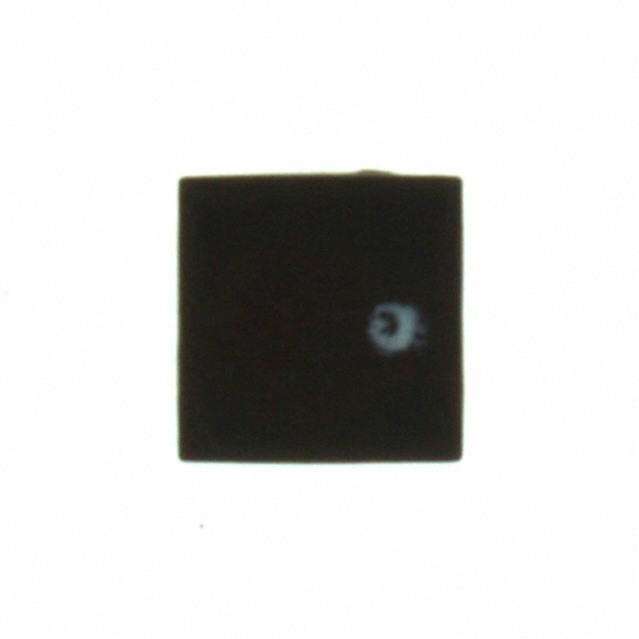

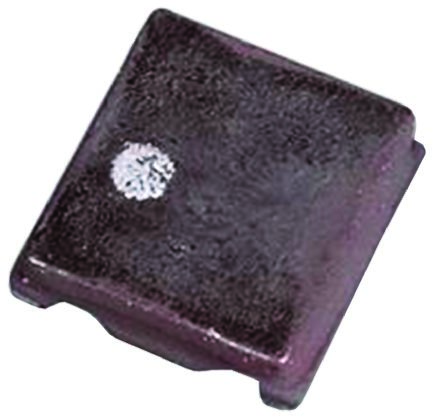

MURATA LQH3NPN6R8NJ0L 表面贴装高频电感器, LQH3NP_J0系列, 6.8 µH, ± 30%, 1212, 45 MHz, 0.21 ohm
表面安装功率器(LQH3NP_J0 系列)
LQH3NP_J0 系列薄型(最大 1.1 mm)线绕片状电感器
### Murata 非标准表面安装电感器(扼流圈)
得捷:
FIXED IND 6.8UH 850MA 252MOHM SM
欧时:
Murata LQH3NP_J0 系列 屏蔽 铁氧体芯材 6.8 μH 绕线贴片电感器 LQH3NPN6R8NJ0L, ±30%容差, 850mA Idc
贸泽:
Fixed Inductors 1212 6.8uH 30%
e络盟:
表面贴装高频电感器, LQH3NP_J0系列, 6.8 µH, ± 30%, 1212, 45 MHz, 0.21 ohm
艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this power chip LQH3NPN6R8NJ0L surface mount inductor from Murata is perfect for you! This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 6.8u H. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 252m Ohm. This device is made with wirewound technology. This product is 3.2 mm long, 1.2 mm tall and 3.2 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 45M Hz.
安富利:
Ind Power Chip Shielded Wirewound 6.8uH 30% 1MHz Ferrite 850mA 1212 Embossed T/R
富昌:
LQH3 系列 1212 6.8 uH ±30 % 850 mA 210 mOhm 表面贴装 屏蔽 线绕 电感
Chip1Stop:
Ind Power Chip Shielded Wirewound 6.8uH 30% 1MHz Ferrite 850mA 1212 Embossed T/R
额定电流 850 mA
容差 ±30 %
电感 6.8 µH
自谐频率 45 MHz
产品系列 LQH
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤252 mΩ
额定电流DC 700 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.21 Ω
安装方式 Surface Mount
封装 1212

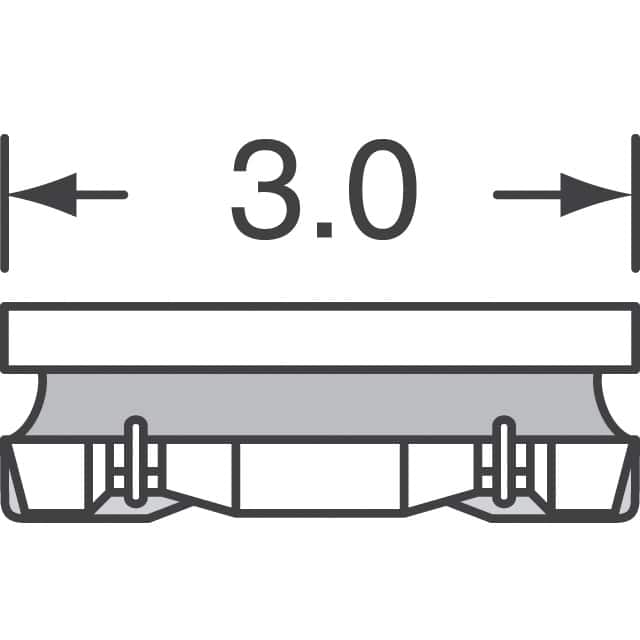

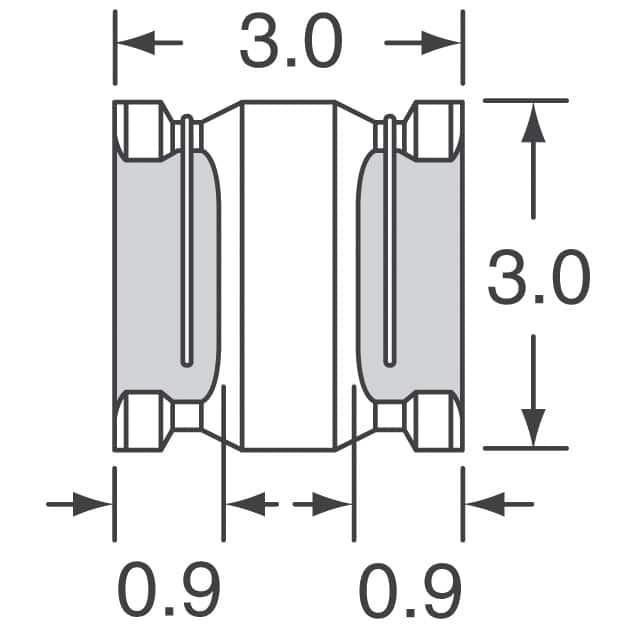

长度 3 mm
宽度 3 mm
高度 1.2 mm
封装 1212
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 1000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2017/07/07
