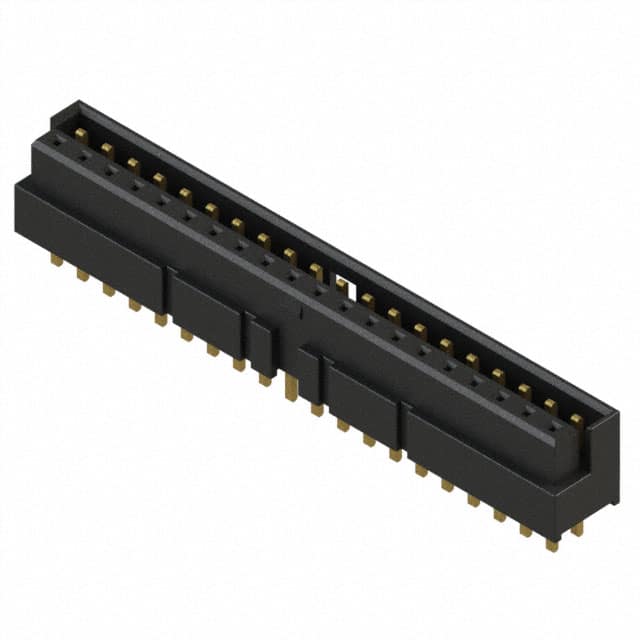

LS2-120-01-L-D

SAMTEC LS2-120-01-L-D Board-To-Board Connector, 2mm, 40Contacts, Receptacle, LS2 Series, Solder, 2Rows

40 位置 自配接，不分公母，无极性 通孔 镀金

欧时:
CONN SELF-MATE 40POS VERT GOLD

得捷:
CONN SELF-MATE 40POS VERT GOLD

艾睿:
Reduce the possibility of accidentally shorting pins when using a printed circuit board with this socket and terminal strip LS2-120-01-L-D header connector from Samtec. This SKT/HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2 mm. This is a 2-row connector. It has a maximum voltage rating of 475 VAC. This device has a maximum current rating of 3.2 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. LS2-120-01-L-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 41.57 mm long, 6.35 mm tall and 5.27 mm deep.

安富利:
Conn Socket and Terminal Strip SKT/HDR 40 POS 2mm Solder ST Thru-Hole Tube

Newark:
# SAMTEC  LS2-120-01-L-D  Board-To-Board Connector, 2 mm, 40 Contacts, Receptacle, LS2 Series, Solder, 2 Rows
