LFXTAL003166

IQD FREQUENCY PRODUCTS  LFXTAL003166  晶振与振荡器, 10 MHz, SMD, 11.4mm x 4.9mm, 50 ppm, 16 pF, 30 ppm

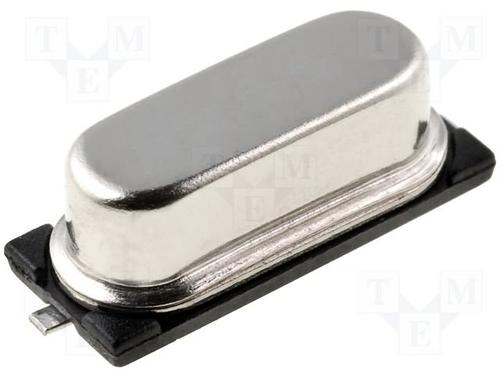

The LF A143G is a 11.4 x 4.9mm SMD Crystal with hermetically sealed in an inert atmosphere, resistance welded, glass to metal seals on leads and industrial standard package. Lead wires are mounted onto a plastic former to create a gull wing mount. Frequency range of 3.2 to 100MHz, load capacitance of 16pF and frequency tolerance at ±30ppm.

830003166

.

Ageing ±5ppm per year maximum

.

Fundamental mode

.

40R ESR
