L-07C27NJV6T

0402 27nH ±5% 200mA

27nH Unshielded Multilayer Inductor 200mA 900mOhm Max 0402 1005 Metric

得捷:
FIXED IND 27NH 200MA 900MOHM SMD

立创商城:
27nH ±10%

艾睿:

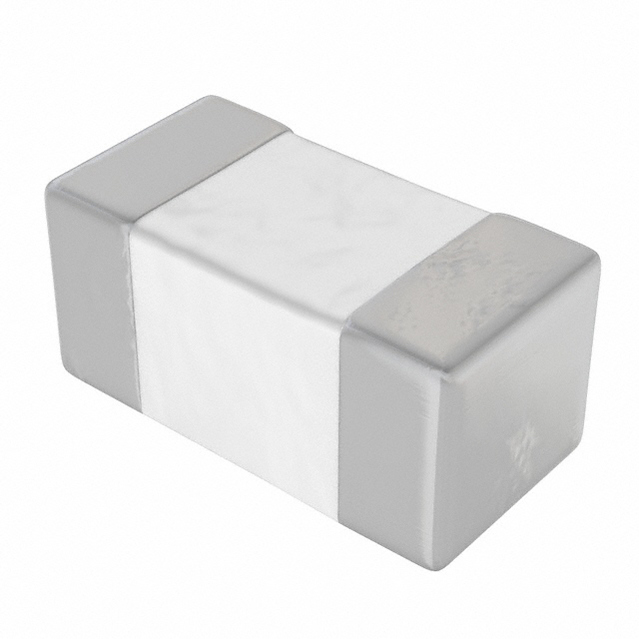

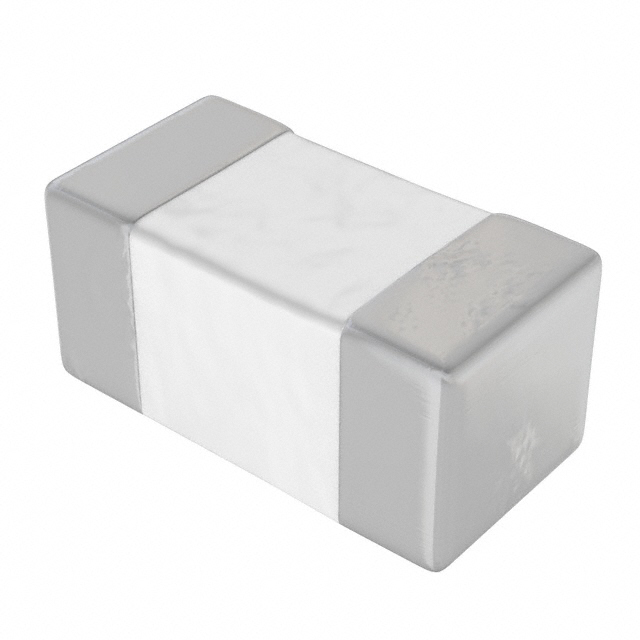

Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip L-07C27NJV6T surface mount inductor from Johanson is perfect for you! This SMD inductor has an operating temperature range of -40 °C to 100 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has an inductance of 27n H. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. It has a tolerance of 5%. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.9GTyp Hz. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 900m Ohm. This device utilizes multi-layer technology.

Verical:
Inductor RF Chip Multi-Layer 0.027uH 5% 100MHz 8Q-Factor Ceramic 0.2A 0.9Ohm DCR 0402 T/R

RfMW:
RF MLI, 0402, 27nH,±5%
