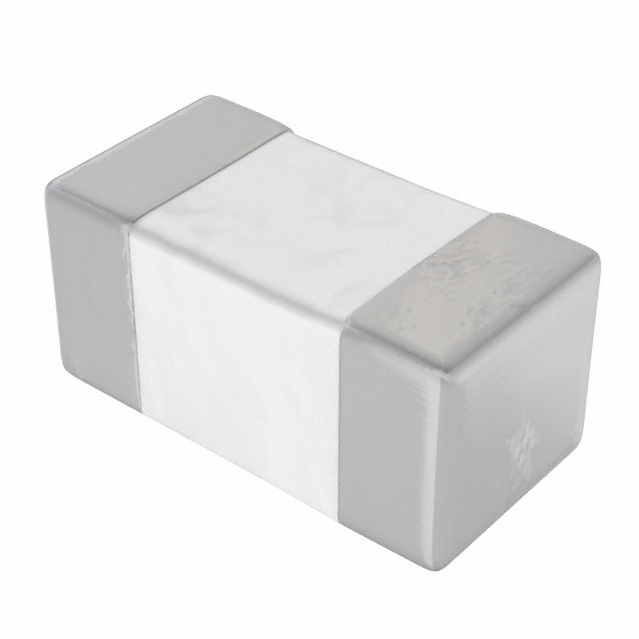

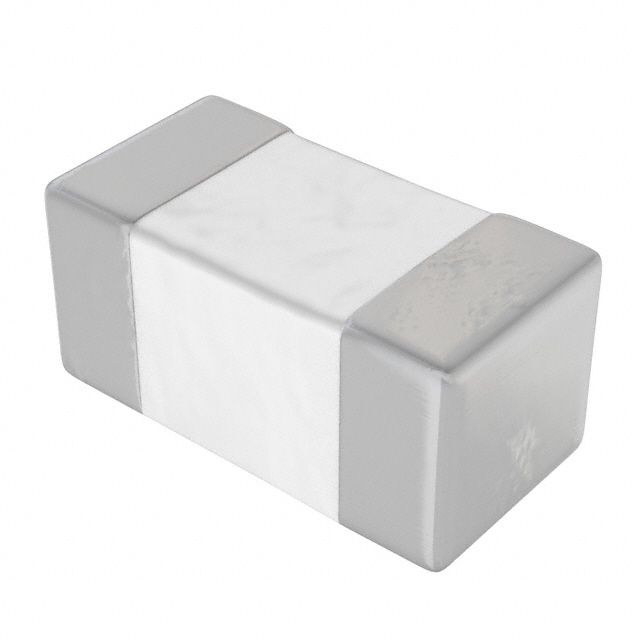

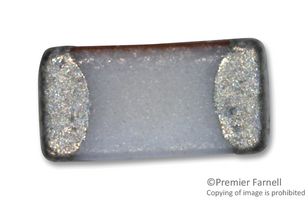

0402 3.3nH 300mA
3.3 nH 无屏蔽 多层 器 300 mA 190 毫欧最大 0402(1005 公制)
得捷:
FIXED IND 3.3NH 300MA 190MOHM SM
艾睿:
An ideal space-saving electronic component is this rf chip L-07C3N3SV6T surface mount inductor from Johanson. This SMD inductor has an operating temperature range of -40 °C to 100 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has an inductance of 3.3n H. This product is 1.1 mm long, 0.6 mm tall and 0.6 mm deep. This device utilizes multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 8.5GTyp Hz. This SMD inductor has a maximum DC current of 300m A with a maximum resistance of 190m Ohm.
安富利:
Ind RF Chip Multi-Layer 3.3nH 0.3nH 100MHz 8Q-Factor Ceramic 300mA 0402 Paper T/R
Verical:
Inductor RF Chip Multi-Layer 0.0033uH 0.3nH 100MHz 8Q-Factor Ceramic 0.3A 0.19Ohm DCR 0402 T/R
Newark:
# JOHANSON TECHNOLOGY L-07C3N3SV6T Surface Mount High Frequency Inductor, L-07C Series, 3.3 nH, 300 mA, 0402 [1005 Metric], Multilayer
RfMW:
RF MLI, 0402, 3.3nH,±0.3
额定电流 300 mA
电感 3.3 nH
自谐频率 8.5 GHz
Q值 8.0
电感公差 ±0.3 nH
测试频率 100 MHz
电阻DC) ≤190 mΩ
额定电流DC 300 mA
工作温度Max 100 ℃
工作温度Min -55 ℃
电阻DC Max 0.19 Ω
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.6 mm
封装公制 1005
封装 0402
工作温度 -40℃ ~ 100℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
L-07C3N3SV6T Johanson Technology 约翰逊 | 当前型号 | 当前型号 |
L-07C3N3KV6T 约翰逊 | 类似代替 | L-07C3N3SV6T和L-07C3N3KV6T的区别 |
MLK1005S3N3S 东电化 | 功能相似 | L-07C3N3SV6T和MLK1005S3N3S的区别 |
PM0402-3N3-RC 伯恩斯 | 功能相似 | L-07C3N3SV6T和PM0402-3N3-RC的区别 |
