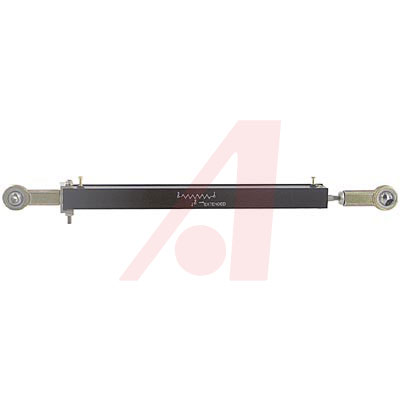

LCP12Y-100-5K

线性位移传感器 5K 100mm Linear Ball Ends

Spherical ball ends allow greater mounting flexibility. Same electrical specifications and tolerances as LCP12 series above.

.

* Life Expectancy: **20,000,000 strokes. **Electrical Stroke:** 1" to 4" **Linearity: **0.5% to 1.5% standard. **Resistance Tolerance:** 20%. **Power** **Rating:** 0.2 to 1.2 Watt.

贸泽:
线性位移传感器 5K 100mm Linear Ball Ends

Allied Electronics:
Pot, Precision; Cnd Pl; Rest 5 Kilohms; Linear; Pwr-Rtg 1.2W; Dim 5inLx0.5inW

Newark:
# ETI SYSTEMS  LCP12Y-100-5K  Potentiometer, 5 kohm, 1.2 W, ± 20%, LCP12 Series, Linear, ± 400ppm/°C
