LC1D80P7

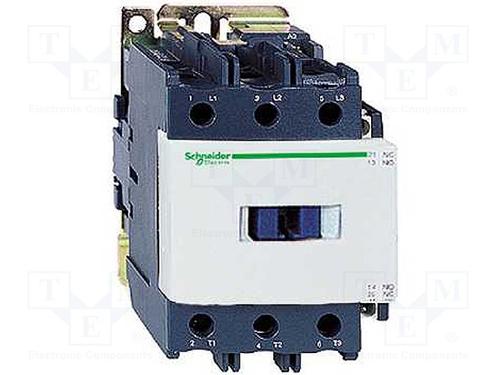

SCHNEIDER ELECTRIC / TELEMECANIQUE LC1D80P7 Contactor, 230VAC, 3Pole, DPDT, DIN Rail, 125A, 230V

The from is a TeSys D three pole contactor with normally open NO contacts. It is approved by UL 508, CSA C22.2, CCC, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1 and IEC 60947-5-1 standards. TeSys D contactors are designed for perfect integration in control systems. They can be used in switching equipments or relay coils, powering control equipments, powering signalling equipments and creating motor starters for any type of application.

.

AC-1 and AC-3 utilisation category

.

Rated operational voltage of 690VAC at 25Hz to 400Hz and 300VDC for power circuit

.

Rated operational current of 125A at <= 440VAC AC-1 and 80A at <= 440VAC AC-3 for power circuit

.

Motor power of 45KW at 415VAC to 440VAC, 50Hz/60Hz

.

Control circuit voltage of 230VAC at 50Hz/60Hz

.

UL94 V-1 flammability

.

Ambient operating temperature range from -5°C to 60°C

.

IP2x front face degree of protection conforming to IEC 60529 standard

.

Power dissipation per pole is 12.5W AC-1 and 5.1W AC-3

.

Rated breaking capacity of 1100A at 440V for power circuit conforming to IEC 60947 standard
