MURATA LQW2UASR47J00L 表面贴装高频电感器, LQW2UA系列, 470 nH, ± 5%, 1008 [2520 公制], 450 MHz, 1.19 ohm
无屏蔽 绕线 器 1.19 欧姆最大 1008(2520 公制)
得捷:
FIXED IND 470NH 470MA 1.19OHM SM
立创商城:
470nH ±5% 1.19Ω
贸泽:
Fixed Inductors 470nH 470mA 450MHz
e络盟:
MURATA LQW2UASR47J00L 表面贴装高频电感器, LQW2UA系列, 470 nH, ± 5%, 1008 [2520 公制], 450 MHz, 1.19 ohm
艾睿:

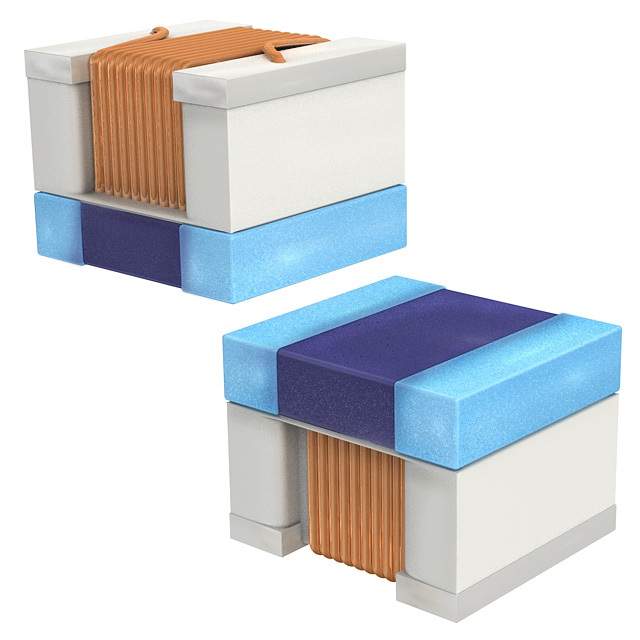

This rf chip LQW2UASR47J00L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 5%. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep. This device is made with wirewound technology. It has an inductance of 470n H. This SMD inductor has a maximum DC current of 470m A with a maximum resistance of 1.19 Ohm. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 450M Hz.
安富利:
Ind RF Chip Wirewound 470nH 5% 25MHz 45Q-Factor 470mA 1008 Embossed T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.47uH 5% 25MHz 45Q-Factor Non Magnetic 0.47A 1.19Ohm DCR 1008 T/R
额定电流 470 mA
容差 ±5 %
电感 470 nH
自谐频率 450 MHz
Q值 45.0
产品系列 LQW
电感公差 ±5 %
测试频率 25 MHz
电阻DC) 1.19 Ω
额定电流DC 470 mA
工作温度Max 125 ℃
工作温度Min 55 ℃
电阻DC Max 1.19 Ω
安装方式 Surface Mount
封装 1008
长度 2.5 mm
宽度 2.4 mm
高度 1.83 mm
封装 1008
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 电源管理, Consumer Electronics, 工业, 消费电子产品, Portable Devices, Power Management, Industrial, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQW2UASR47J00L muRata 村田 | 当前型号 | 当前型号 |
MCWL08JTR47 Multicomp | 类似代替 | LQW2UASR47J00L和MCWL08JTR47的区别 |
744762247A 伍尔特 | 功能相似 | LQW2UASR47J00L和744762247A的区别 |
PE-1008CD471JTT 普思电子 | 功能相似 | LQW2UASR47J00L和PE-1008CD471JTT的区别 |
