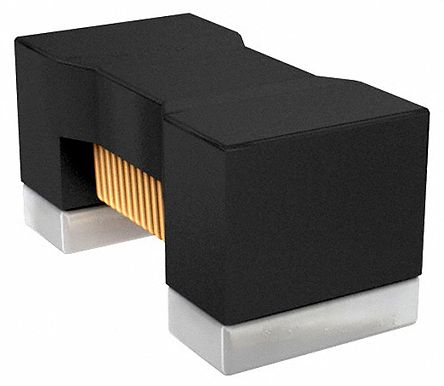

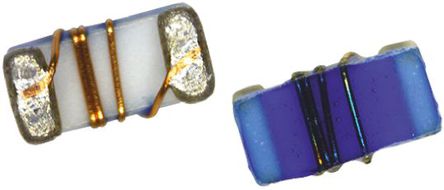

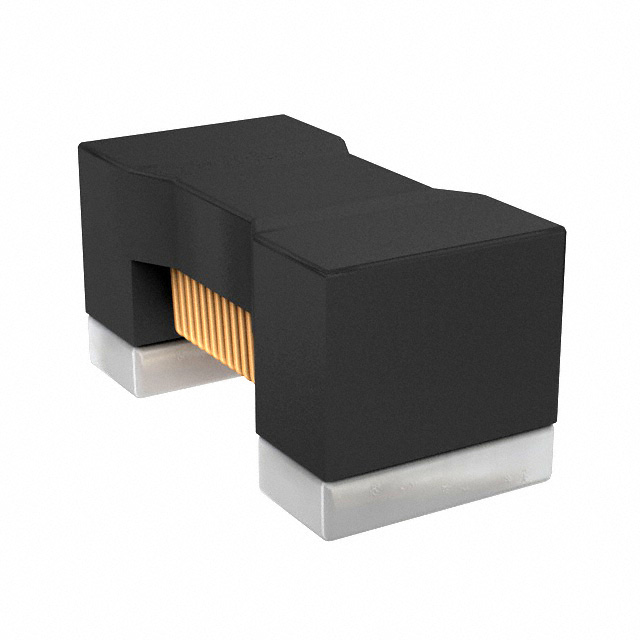

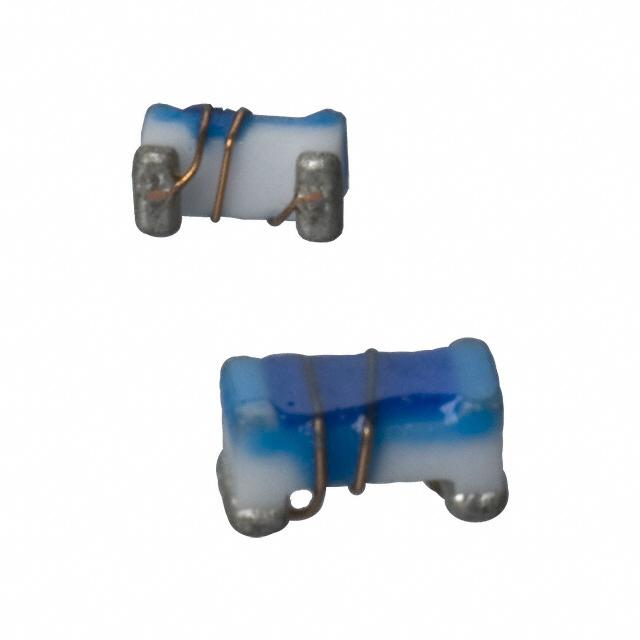

LQW18AN68NG00D

MURATA  LQW18AN68NG00D  表面贴装高频电感器, LQW18A_00系列, 68 nH, ± 2%, 0603 [1608 公制], 2.2 GHz, 0.38 ohm

值Inductance| 68nH \---|--- 误差Tolerance| ±2% 额定电流Current Rating| 340mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 38 @ 200MHz 自振谐频率SRFFrequency - Self Resonant| 2.2GHz DC电阻DCRDC Resistance DCR| 0.38Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| LQW18A_00 Series Features 1. Broad range of inductance 2.2nH to 470nH with E24 step line up. 2. Horizontal wound structure enables tight inductance tolerance +-0.2nH, +-2%. Stable circuit operation is possible. 3. The subminiature dimensions 1.6x0.8mm allow high density mounting. 4. The high self resonant frequency realizes high Q value and stable inductance at high frequency. 5. Low DC resistance design is ideal for low loss, high output and low power consumption. 6. Resin-coated surface enables excellent mounting. 描述与应用| LQW18A_00系列 特点 1。广泛的电感（2.2NH~~470nH容）。 2。卧式缠绕结构使电感容差（+0.2NH，+-2％）。 3。超小型尺寸（1.6×0.8mm的）。 4。高自谐振频率，实现高Q值和高频稳定电感。 5。低直流电阻低损耗，高输出和低功耗。
