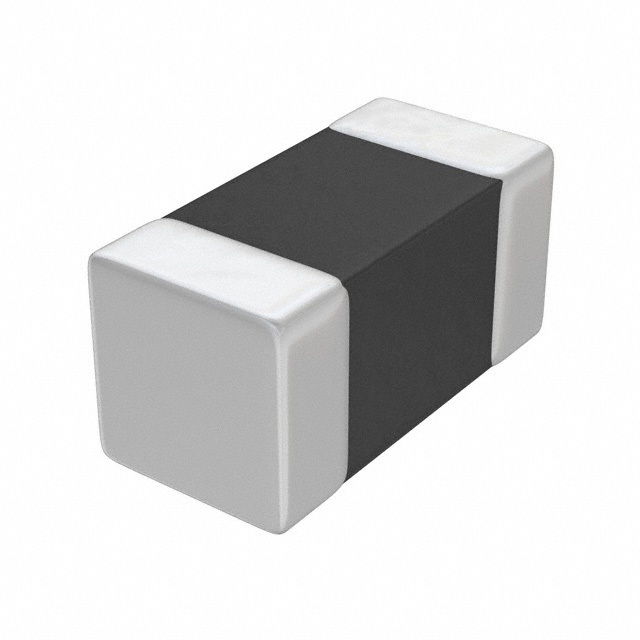

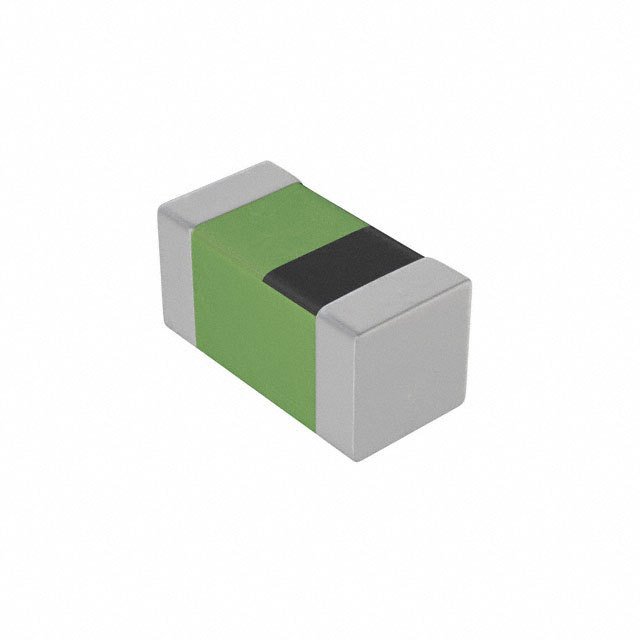

LQG15HNR10J02D

MURATA  LQG15HNR10J02D  表面贴装高频电感器, LQG15HN系列, 100 nH, ± 5%, 0402 [1005 公制], 600 MHz, 1.6 ohm

固定器

立创商城:
100nH ±5% 1.6Ω

得捷:
FIXED IND 100NH 200MA 1.6OHM SMD

欧时:

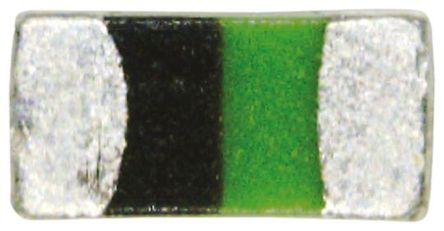

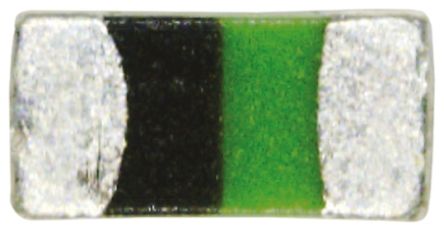

### Murata 0402 LQQ15HN 系列高频片式电感器Murata LQG15HN SMD 电感器具有多层结构。 尽管 Q 系数比线绕等效产品低，在诸多产品中，其多层结构仍可在额定电流、尺寸和 L 值容差之间提供最优平衡。 LQGH15HS SMD 电感器高度可靠，且适用于扼流圈、WLAN 网络、射频电路匹配和移动通信设备谐振中的应用。可用于高频率电路 高频率时具有极佳的稳定性 单片结构 ![http://china.rs-online.com/largeimages/L0105849-10.jpg]http://china.rs-online.com/largeimages/L0105849-10.jpg ### 表面安装 0402 电感器（扼流圈）

贸泽:
固定电感器 .10 UH 5%

e络盟:
MURATA  LQG15HNR10J02D  表面贴装高频电感器, LQG15HN系列, 100 nH, ± 5%, 0402 [1005 公制], 600 MHz, 1.6 ohm

艾睿:
Does your electronic circuit design require filtering, power supplies, and other similar functions? Then this rf chip LQG15HNR10J02D surface mount inductor from Murata is perfect for you! This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 5%. This device is made with multi-layer technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 600M Hz. This SMD inductor has a maximum DC current of 200m A with a maximum resistance of 1.6 Ohm. This product is 1.05 mm long, 0.55 mm tall and 0.55 mm deep. It has an inductance of 100n H.

安富利:
Ind RF Chip Multi-Layer 100nH 5% 100MHz 8Q-Factor Air 150mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Multi-Layer 100nH 5% 100MHz 8Q-Factor Ceramic 200mA 1.6Ohm DCR 0402 T/R

TME:

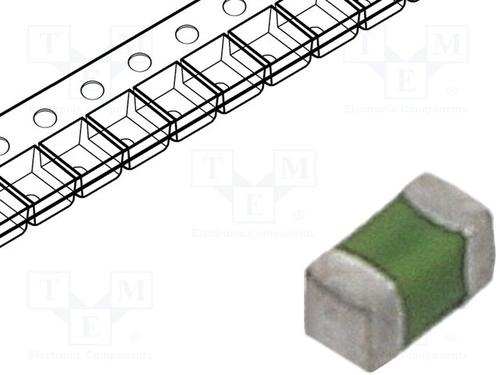

Inductor: ceramic; SMD; 0402; 100nH; 200mA; 1.6Ω; Q:8; ftest:100MHz

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.1uH 5% 100MHz 8Q-Factor Air 0.2A 1.6Ohm DCR 0402 T/R

儒卓力:
**LQG15HN 0,1uH 150mA 5% MLT **

Win Source:
FIXED IND 100NH 150MA 1.6 OHM
