LQG18HN18NJ00D

MURATA  LQG18HN18NJ00D  表面贴装高频电感器, LQG18HN系列, 18 nH, ± 5%, 0603 [1608 公制], 2.6 GHz, 0.45 ohm

固定器

得捷:
FIXED IND 18NH 350MA 450MOHM SMD

立创商城:
18nH ±5% 370mΩ

e络盟:
MURATA  LQG18HN18NJ00D  表面贴装高频电感器, LQG18HN系列, 18 nH, ± 5%, 0603 [1608 公制], 2.6 GHz, 0.45 ohm

艾睿:

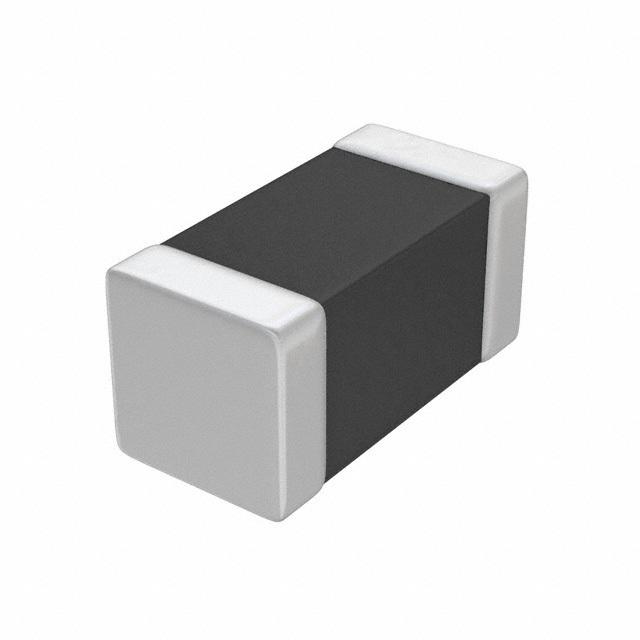

An ideal space-saving electronic component is this rf chip LQG18HN18NJ00D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. It has an inductance of 18n H. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 370m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.6G Hz. This device is made with multi-layer technology. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep.

安富利:
Ind RF Chip Multi-Layer 18nH 5% 100MHz 12Q-Factor Air 350mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Multi-Layer 18nH 5% 100MHz 12Q-Factor Ceramic 600mA 370mOhm DCR 0603 T/R

TME:

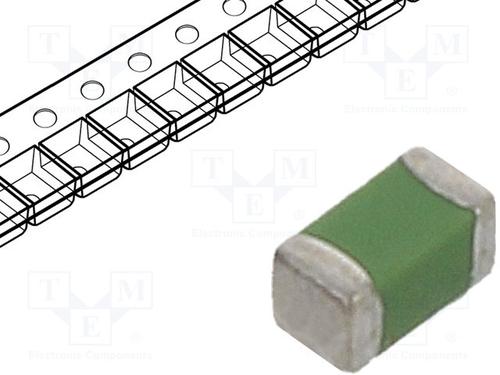

Inductor: ceramic; SMD; 0603; 18nH; 600mA; 0.37Ω; ftest:100MHz; Q:12

Verical:
Inductor RF Chip Unshielded Multi-Layer 0.018uH 5% 100MHz 12Q-Factor Air 0.6A 0.37Ohm DCR 0603 T/R

儒卓力:
**LQG18HN 18nH 300mA 5% MLT **
