LQH31HNR50K03L

MURATA  LQH31HNR50K03L  表面贴装高频电感器, LQH31HN_03系列, 500 nH, ± 10%, 1206 [3216 公制], 270 MHz, 0.44 ohm

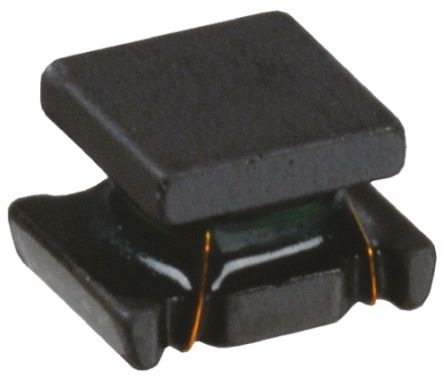

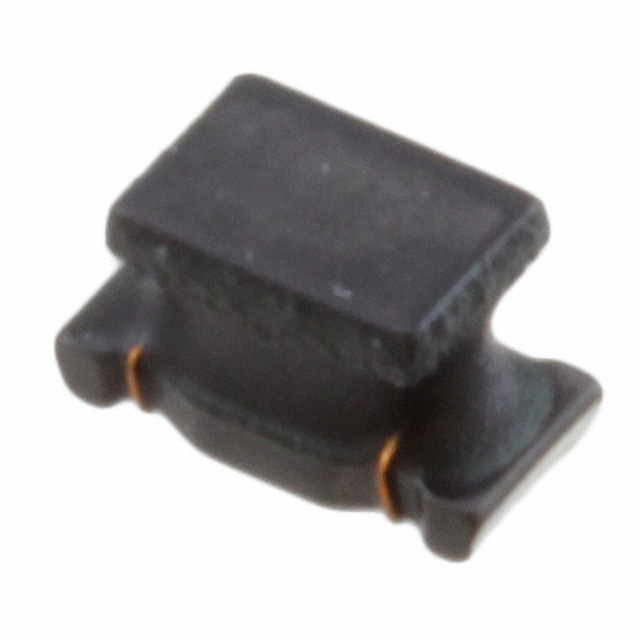

Murata 1206 LQH31H 系列线绕扼流圈

LQH31H 系列微型贴片线圈器，具有低直流电阻和高电流容量特性。 LQH31H 系列适合用作电感器，用于高频电路。

立创商城:
500nH ±10% 260mA 440mΩ

得捷:
FIXED IND 500NH 260MA 572MOHM SM

欧时:
Murata LQH31H 系列 屏蔽 铁氧体芯材 500 nH 绕线贴片电感器 LQH31HNR50K03L, ±10%容差, 260mA Idc Q:60

贸泽:
固定电感器 0.5uH 10%

e络盟:
# MURATA  LQH31HNR50K03L  表面贴装高频电感器, LQH31HN_03系列, 500 nH, ± 10%, 1206 [3216 公制], 270 MHz, 0.44 ohm

艾睿:
This rf chip LQH31HNR50K03L surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This SMD inductor has a maximum DC current of 260m A with a maximum resistance of 572m Ohm. This device is made with wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 270M Hz. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. It has an inductance of 500n H. It has a tolerance of 10%.

安富利:
Ind RF Chip Wirewound 500nH 10% 1MHz 60Q-Factor Ferrite 260mA 1206 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 500nH 10% 1MHz 60Q-Factor Ferrite 260mA 572mOhm DCR 1206 T/R

Verical:
Inductor RF Chip Wirewound 0.5uH 10% 1MHz 60Q-Factor Ferrite 0.26A 0.572Ohm DCR 1206 T/R

Win Source:
FIXED IND 500NH 260MA 440 MOHM
