LQW2UASR82J00L

MURATA  LQW2UASR82J00L  表面贴装高频电感器, LQW2UA系列, 820 nH, ± 5%, 1008 [2520 公制], 350 MHz, 1.61 ohm

820 nH 无屏蔽 绕线 器 400 mA 1.61 欧姆最大 1008（2520 公制）

得捷:
FIXED IND 820NH 400MA 1.61OHM SM

立创商城:
820nH ±5% 1.61Ω

e络盟:
MURATA  LQW2UASR82J00L  表面贴装高频电感器, LQW2UA系列, 820 nH, ± 5%, 1008 [2520 公制], 350 MHz, 1.61 ohm

艾睿:

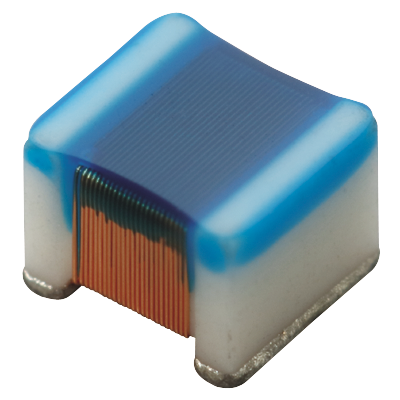

An ideal space-saving electronic component is this rf chip LQW2UASR82J00L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 5%. This device utilizes wirewound technology. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep. Its test frequency is 25M Hz, while its minimum self-resonant frequency is 350M Hz. It has an inductance of 820n H. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 1.61 Ohm.

安富利:
Ind RF Chip Wirewound 820nH 5% 25MHz 45Q-Factor 400mA 1008 Embossed T/R

Chip1Stop:
Ind RF Chip Wirewound 820nH 5% 25MHz 45Q-Factor 400mA 1008 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.82uH 5% 25MHz 45Q-Factor Non Magnetic 0.4A 1.61Ohm DCR 1008 T/R
