LZ4-00G115

Power LED; Luminous Flux: 532lm; LED Color: Green; Viewing Angle: 95°; Forward Voltage: 14.5V; Forward Current: 1A; P...

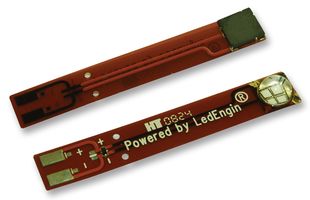

The LZ4 series 4-die Emitter offers highest efficacies and provides industry leading flux densities lm/mm². e"s colour offerings consist of red, deep red, far red, green, blue, amber, dental blue and white in the visible range and ultra violet 365nm and 400nm and infrared 850nm in the non-visible range. The multi-chip packages are also available with multi colour/wavelength options such as RGB, RGBA or dental blue & UV. Every die is individually addressable for a maximum of design flexibility.

.

700mA Nominal drive current

.

1200mA Maximum drive current

.

1.1°C/W Thermal resistance

.

150°C 125°C for red, amber and UV maximum junction temperature
