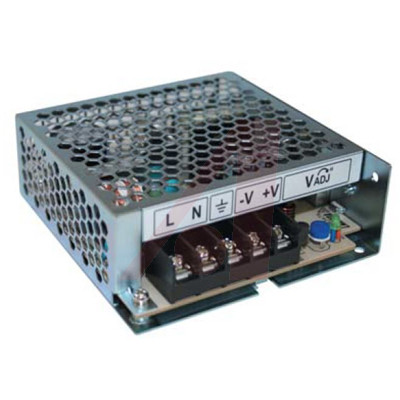

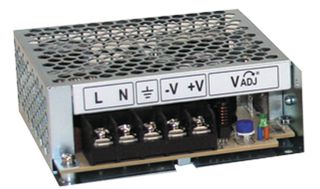

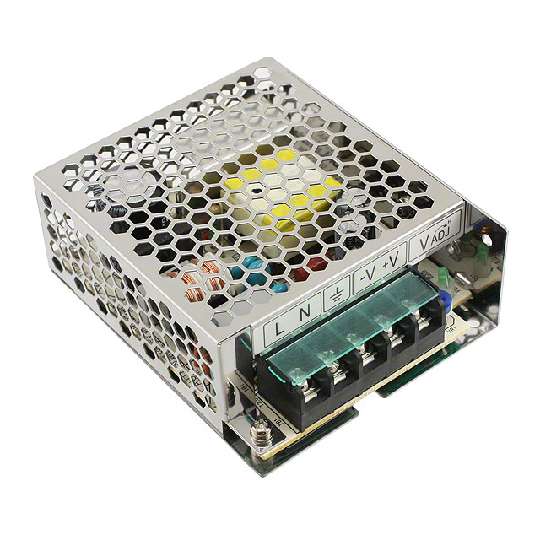

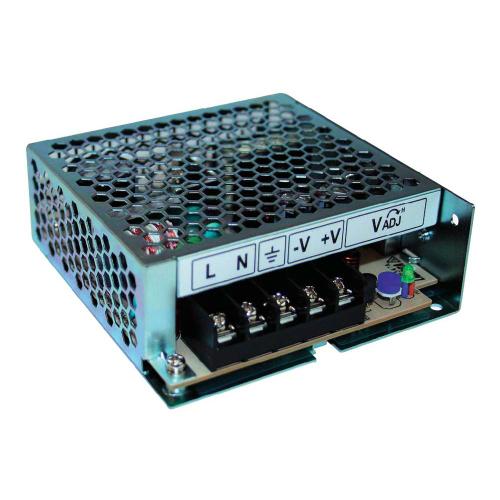

TDK LAMBDA LS35-36 交流-直流转换器, 闭合式, 1路输出, 35W, 1A, 36V
封闭式 AC DC 转换器 1 输出 36V - - - 1A 88 ~ 264 VAC 输入
得捷:
AC/DC CONVERTER 36V 35W
e络盟:
交流-直流转换器, 闭合式, 1路输出, 35W, 1A, 36V
艾睿:
Ensure optimal performance of your electronic device with the use of this LS35-36 AC to DC power supply from TDK-Lambda. It has a voltage of 36 V. This part&s;s single output can handle a current up to 1 A. This part has a minimum operating temperature of -25 °C and a maximum of 70 °C.
Allied Electronics:
Power Supply; AC-DC; 36V; 1A; 86-264V In; Enclosed; Pnl Mnt; PFC; Embedded; 36W; LS Series
安富利:
AC/DC Power Supply Single-OUT 36V 1A 5-Pin
Chip1Stop:
AC/DC Power Supply Single-OUT 36V 1A 5-Pin
Verical:
AC/DC Power Supply Single-OUT 36V 1A 5-Pin
额定功率 35 W
输出接口数 1
输出电压 36 V
输出电流 1 A
输出功率 36 W
隔离电压 3 kV
输入电压DC Max 373 V
输入电压DC Min 125 V
输入电压AC Max 264 v
输入电压AC Min 88 v
额定电流Max 0.8 A
输出电流Max 1 A
输入电流Min 0.8 A
输出功率Max 35 W
额定功率Max 35 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压AC 88V ~ 264V
输入电压 88V ~ 264V
安装方式 Chassis
引脚数 5
长度 99.1 mm
宽度 81.3 mm
高度 35.56 mm
工作温度 -25℃ ~ 70℃
产品生命周期 Active
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
