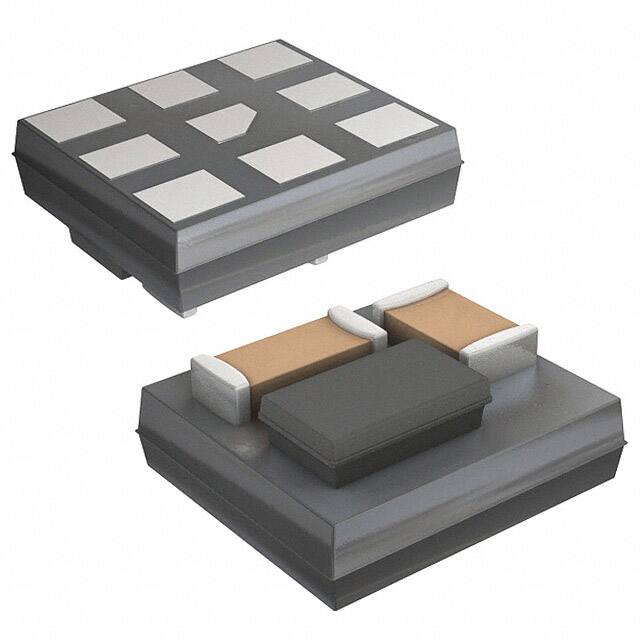

由于低EMI噪音，占地面积小，以Murataâ ???? s感应器嵌入铁素体基体技术 Low EMI noise and small footprint due to Murataâs inductor-embedded ferrite substrate technology
Features
Low EMI noise and small footprint due to Murata’s inductor-embedded ferrite substrate technology
High efficiency using synchronous rectifier technology and PFM/PWM auto-select function forced mode available on some models
Input voltage range = 2.3–5.5V
Load currents available are 600mA, 1A, 2A, and 3A
Fixed output voltage = 1.0V, 1.2V, 1.35V, 1.5V, 1.8V, 2.5V, 3.0V, or 3.3V see product line-up table on back
Switching frequency = 3.0, 3.3, 4.0, or 6MHz see back
Operating temperature range = -40 to +85°C
电源电压DC 3.70 V
额定功率 3 W
输出接口数 1
输出电压 1 V
输出电流 1 A
输入电压Max 5.5 V
输入电压Min 2.5 V
输入电压DC Max 5.5 V
输入电压DC Min 2.5 v
输出电压Max 3.3 V
输出电压Min 1 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -30 ℃
安装方式 Surface Mount
封装 SMD-9
宽度 3.2 mm
高度 1.3 mm
封装 SMD-9
工作温度 -30℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
