33nH ±5%
33 nH 无屏蔽 绕线 器 1 A 140 毫欧最大 1008(2520 公制)
得捷:
FIXED IND 33NH 1A 140 MOHM SMD
立创商城:
33nH ±5% 140mΩ
艾睿:

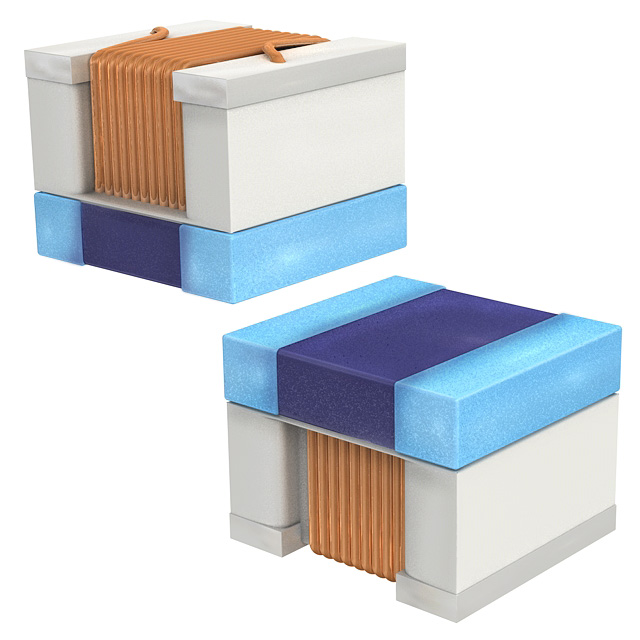

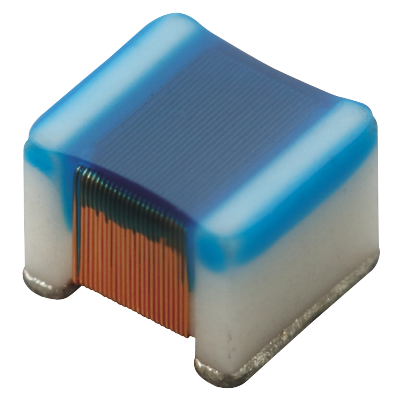

This rf chip LQW2UAS33NJ00L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 2.92 mm long, 2.03 mm tall and 2.65 mm deep. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 140m Ohm. It has a tolerance of 5%. It has an inductance of 33n H. This device utilizes wirewound technology. Its test frequency is 50M Hz, while its minimum self-resonant frequency is 1.6G Hz.
安富利:
Ind RF Chip Wirewound 33nH 5% 50MHz 60Q-Factor 1A 1008 Embossed T/R
Chip1Stop:
Ind RF Chip Wirewound 33nH 5% 50MHz 60Q-Factor 1A 1008 Embossed T/R
Verical:
Inductor RF Chip Unshielded Wirewound 0.033uH 5% 50MHz 60Q-Factor Non Magnetic 1A 0.14Ohm DCR 1008 T/R
额定电流 1 A
容差 ±5 %
电感 33 nH
自谐频率 1.6 GHz
Q值 60.0
产品系列 LQW
电感公差 ±5 %
测试频率 50 MHz
电阻DC) ≤140 mΩ
额定电流DC 1 A
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.14 Ω
安装方式 Surface Mount
封装 1008
长度 2.92 mm
宽度 2.65 mm
高度 2.03 mm
封装 1008
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 2000
制造应用 Consumer Electronics, Portable Devices, Power Management, Industrial, Power Management, Consumer Electronics, Industrial, Portable Devices
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
