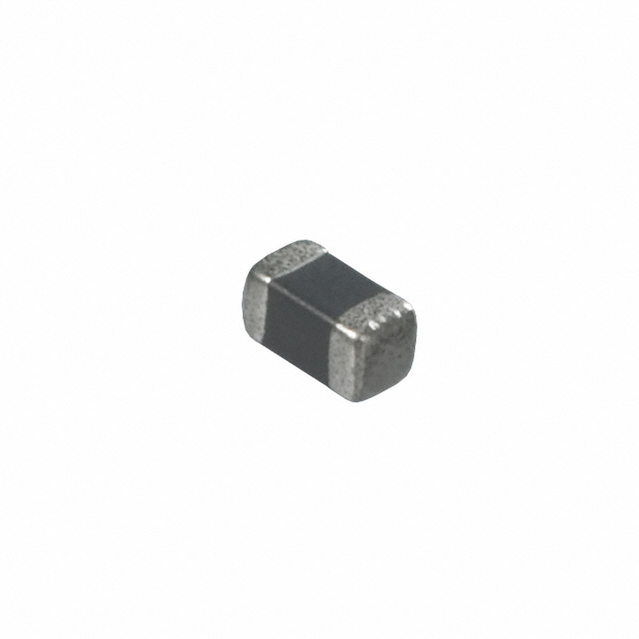

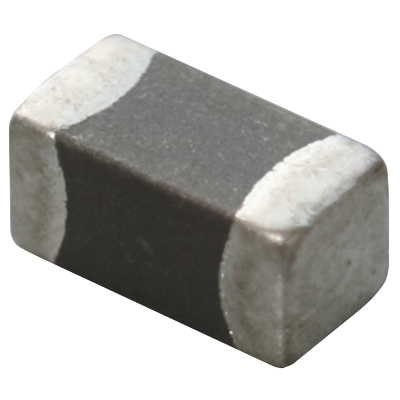

LQM18NN47NM00D

LQM 系列 0603 47 nH 20 % 50 mA 表面贴装 贴片电感

47nH Shielded Multilayer Inductor 50mA 300mOhm Max 0603 1608 Metric

得捷:
FIXED IND 47NH 50MA 300 MOHM SMD

立创商城:
47nH ±20% 50mA 300mΩ

艾睿:
This general purpose chip LQM18NN47NM00D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 50M Hz, while its minimum self-resonant frequency is 260M Hz. It has a tolerance of 20%. It has an inductance of 47n H. This SMD inductor has a maximum DC current of 50m A with a maximum resistance of 300m Ohm. This device is made with multi-layer technology. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep.

安富利:
Ind General Purpose Chip Shielded Multi-Layer 47nH 20% 50MHz 10Q-Factor Ferrite 50mA 0603 Paper T/R

Chip1Stop:
Inductor General Purpose Chip Shielded Multi-Layer 47nH 20% 50MHz 10Q-Factor Ferrite 50mA 300mOhm DCR 0603 T/R
