Murata 0603 LQQ18N 系列高频片式电感器单片式电感器,带铁氧体磁芯,具有屏蔽网,可保护其不受外围元件干扰。 **应用:**谐振和过滤以及自冲击电路,用于电信设备。 ### SMT 0603 电感器(扼流圈)

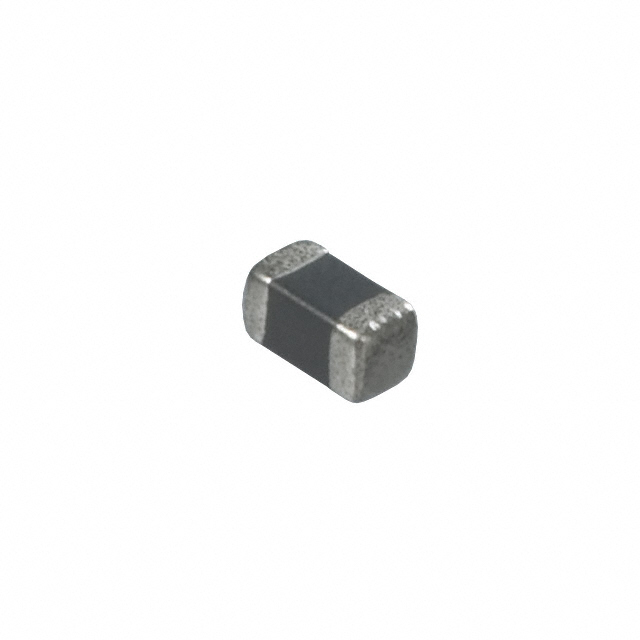

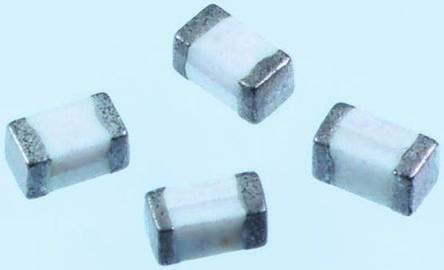

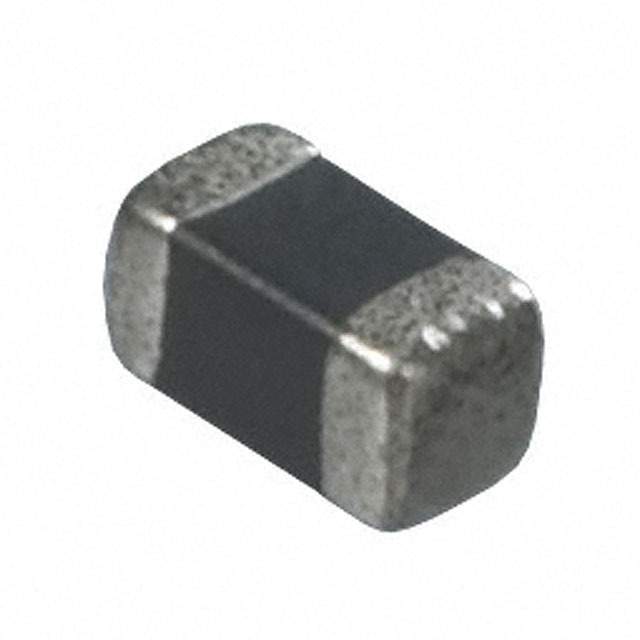

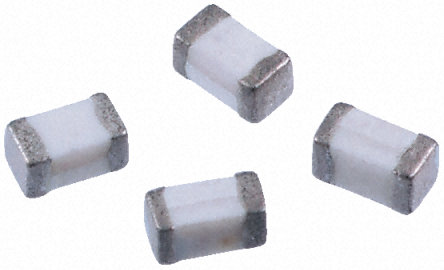

Murata 0603 LQQ18N 系列高频片式器
单片式电感器,带铁氧体磁芯,具有屏蔽网,可保护其不受外围元件干扰。
**应用:**谐振和过滤以及自冲击电路,用于电信设备。
得捷:
FIXED IND 82NH 50MA 300 MOHM SMD
欧时:
Murata LQM18N 系列 屏蔽 82 nH 绕线贴片电感器 LQM18NN82NM00D, ±20%容差, 50mA Idc Q:10
贸泽:
Fixed Inductors 0603 82nH +/-20% DCR 0.30ohm
艾睿:
This general purpose chip LQM18NN82NM00D surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep. This SMD inductor has a maximum DC current of 50m A with a maximum resistance of 300m Ohm. Its test frequency is 50M Hz, while its minimum self-resonant frequency is 245M Hz. This device utilizes multi-layer technology. It has an inductance of 82n H. It has a tolerance of 20%.
安富利:
Ind General Purpose Chip Shielded Multi-Layer 82nH 20% 50MHz 10Q-Factor Ferrite 50mA 0603 Paper T/R
Chip1Stop:
Inductor General Purpose Chip Shielded Multi-Layer 82nH 20% 50MHz 10Q-Factor Ferrite 50mA 300mOhm DCR 0603 Paper T/R
额定电流 50 mA
容差 ±20 %
电感 82 nH
自谐频率 245 MHz
Q值 10.0
产品系列 LQM
电阻 300 mΩ
共振频率 245 MHz
电感公差 ±20 %
测试频率 50 MHz
电阻DC) ≤300 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 300 mΩ
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.8 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LQM18NN82NM00D muRata 村田 | 当前型号 | 当前型号 |
L0603C82NMSMST 基美 | 功能相似 | LQM18NN82NM00D和L0603C82NMSMST的区别 |
MLF1608-82NMT Venkel | 功能相似 | LQM18NN82NM00D和MLF1608-82NMT的区别 |
