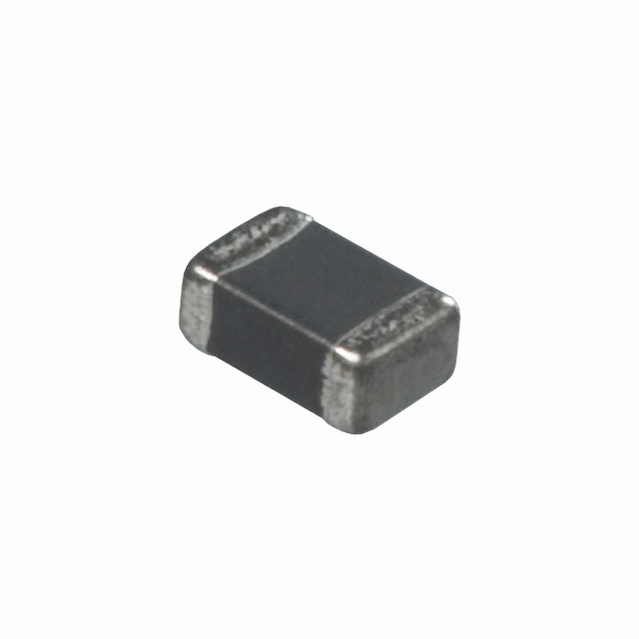

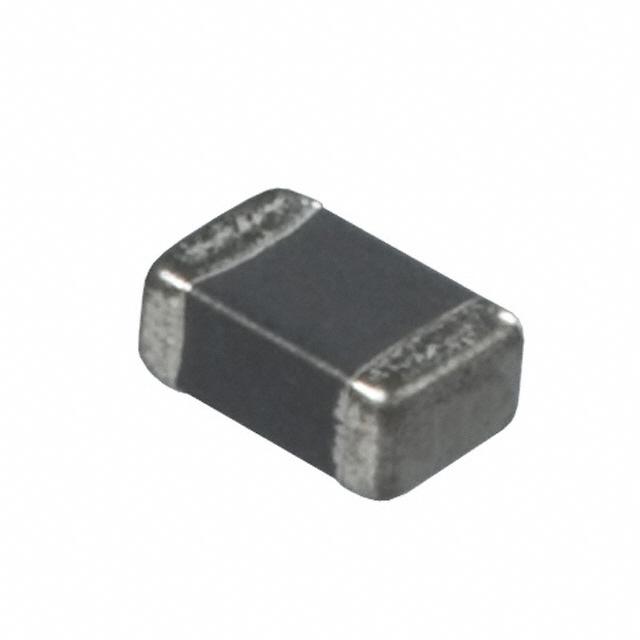

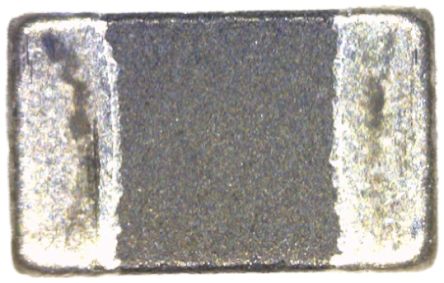

Murata 0805 LQW21N 系列磁性屏蔽多层片式电感器LQM21 系列的磁性屏蔽片式电感器设计,采用 Murata 的原始多层处理技术和磁性材料。 2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。 ### 表面安装 0805 电感器(扼流圈)
Murata 0805 LQW21N 系列磁性屏蔽多层片式器
LQM21 系列的磁性屏蔽片式电感器设计,采用 Murata 的原始多层处理技术和磁性材料。
2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。
得捷:
FIXED IND 2.2UH 30MA 630MOHM SMD
欧时:
### Murata 0805 LQW21N 系列磁性屏蔽多层片式电感器LQM21 系列的磁性屏蔽片式电感器设计,采用 Murata 的原始多层处理技术和磁性材料。 2.0x1.25mm 的微型尺寸使电气设备的设计更紧凑。 ### 表面安装 0805 电感器(扼流圈)
立创商城:
2.2uH ±10% 630mΩ
贸泽:
Fixed Inductors 0805 2.2uH 10%
艾睿:
This general purpose chip LQM21NN2R2K10D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 10%. It has an inductance of 2.2u H. This device is made with multi-layer technology. This SMD inductor has a maximum DC current of 30m A with a maximum resistance of 630m Ohm. This product is 2.2 mm long, 1.05 mm tall and 1.45 mm deep. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 71M Hz.
安富利:
Ind General Purpose Chip Shielded Multi-Layer 2.2uH 10% 10MHz 45Q-Factor Ferrite 30mA 0805 Paper T/R
Chip1Stop:
Inductor General Purpose Chip Shielded Multi-Layer 2.2uH 10% 10MHz 45Q-Factor Ferrite 30mA 630mOhm DCR 0805 Paper T/R
Verical:
Inductor RF Chip Shielded Multi-Layer 2.2uH 10% 10MHz 45Q-Factor Ferrite 0.03A 0.63Ohm DCR 0805 T/R
儒卓力:
**LQM21NN 2,2uH 30mA 10% MLT **
Win Source:
FIXED IND 2.2UH 30MA 630 MOHM
额定电流 30 mA
容差 ±10 %
电感 2.2 µH
自谐频率 71 MHz
产品系列 LQM
屏蔽 Yes
电感公差 ±10 %
测试频率 10 MHz
电阻DC) ≤630 mΩ
额定电流DC 30 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.63 Ω
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.85 mm
封装公制 2012
封装 0805
重量 0.010 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
