Murata 1210 LQH32MN 系列线绕电感器超微型线圈电感器,带铁氧体磁芯,适合一般用途。 高质量和低直流电阻。 这些芯片特别适用于视频、通信、音频设备和移动电话中电子电路性能的提高。 ### 表面安装 1210 电感器(扼流圈)

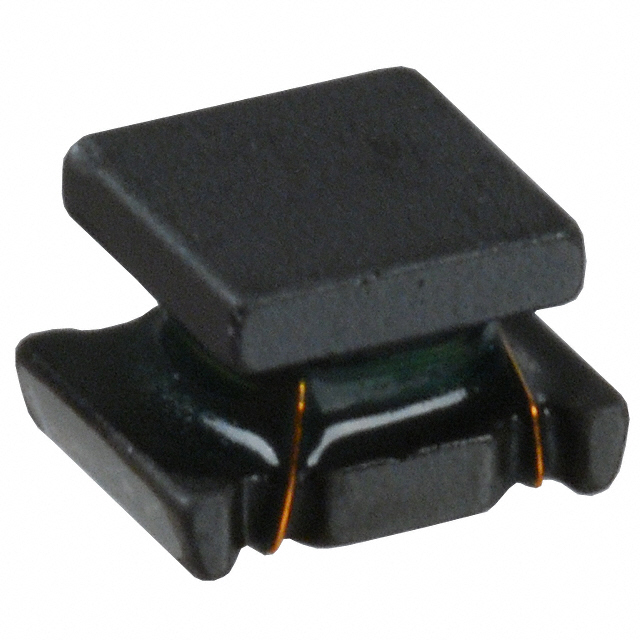

Murata 1210 LQH32MN 系列线绕器
超微型线圈电感器,带铁氧体磁芯,适合一般用途。
高质量和低直流电阻。
这些芯片特别适用于视频、通信、音频设备和移动电话中电子电路性能的提高。
得捷:
FIXED IND 3.9UH 290MA 1.1OHM SMD
立创商城:
3.9uH ±10% 290mA 1.1Ω
欧时:
Murata LQH32MN 系列 3.9 μH 绕线贴片电感器 LQH32MN3R9K23L, ±10%容差, 290mA Idc Q:20, 1.1Ω最大直流电阻
贸泽:
固定电感器 3.9uH 10%
艾睿:
Make any circuit look clean and compact using this general purpose chip LQH32MN3R9K23L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 3.9u H. This SMD inductor has a maximum DC current of 290m A with a maximum resistance of 1.1 Ohm. It has a tolerance of 10%. This product is 3.5 mm long, 2.2 mm tall and 2.7 mm deep. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 35M Hz.
安富利:
Ind General Purpose Chip Unshielded Wirewound 3.9uH 10% 1MHz 20Q-Factor Ferrite 290mA 1210 Embossed T/R
Win Source:
Chip Inductor Chip Coil for General Use Wire Wound Type
额定电流 290 mA
容差 ±10 %
电感 3.9 µH
自谐频率 35 MHz
产品系列 LQH
电感公差 ±10 %
测试频率 1 MHz
电阻DC) ≤1.1 Ω
额定电流DC 290 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 1.1 Ω
安装方式 Surface Mount
封装公制 3225
封装 1210
长度 3.2 mm
宽度 2.5 mm
高度 2 mm
封装公制 3225
封装 1210
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
