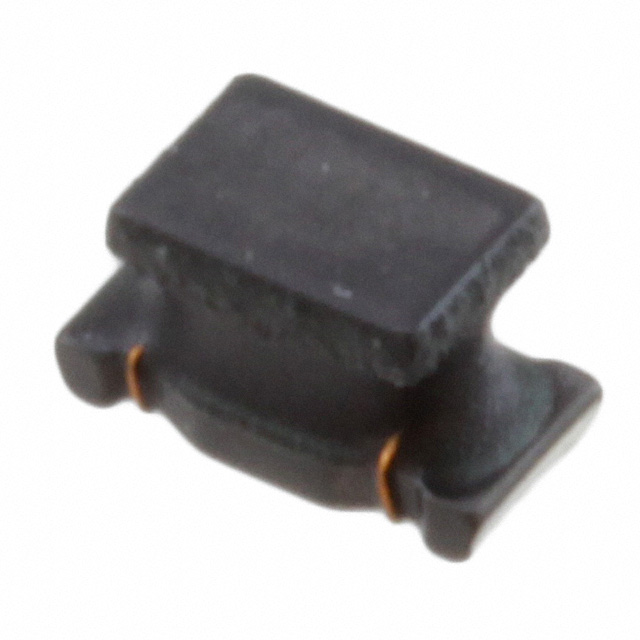

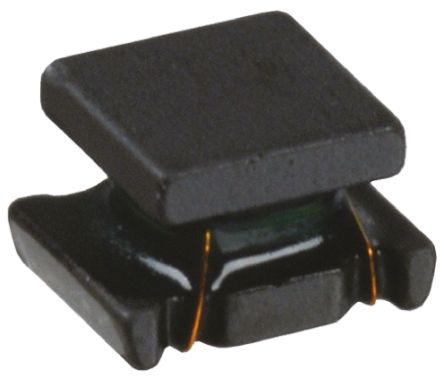

LQH31HNR21K03L

Murata 1206 LQH31H 系列线绕扼流圈LQH31H 系列微型贴片线圈电感器，具有低直流电阻和高电流容量特性。 LQH31H 系列适合用作电感器，用于高频电路。 ### SMT 1206 电感器（扼流圈）

Murata 1206 LQH31H 系列线绕扼流圈

LQH31H 系列微型贴片线圈器，具有低直流电阻和高电流容量特性。 LQH31H 系列适合用作电感器，用于高频电路。

### SMT 1206 电感器（扼流圈）

立创商城:
215nH ±10% 520mA 143mΩ

得捷:
FIXED IND 215NH 520MA 143MOHM SM

欧时:
Murata LQH31H 系列 屏蔽 铁氧体芯材 215 nH 绕线贴片电感器 LQH31HNR21K03L, ±10%容差, 520mA Idc Q:60

艾睿:
This rf chip LQH31HNR21K03L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This device utilizes wirewound technology. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 430M Hz. It has an inductance of 215n H. This SMD inductor has a maximum DC current of 520m A with a maximum resistance of 143m Ohm. It has a tolerance of 10%.

安富利:
Ind RF Chip Wirewound 215nH 10% 1MHz 60Q-Factor Ferrite 520mA 1206 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 215nH 10% 1MHz 60Q-Factor Ferrite 520mA 143mOhm DCR 1206 Embossed T/R

Verical:
Inductor High Frequency Chip Wirewound 0.215uH 10% 1MHz 60Q-Factor Ferrite 0.52A 0.143Ohm DCR 1206 T/R

Win Source:
FIXED IND 215NH 520MA 110 MOHM
