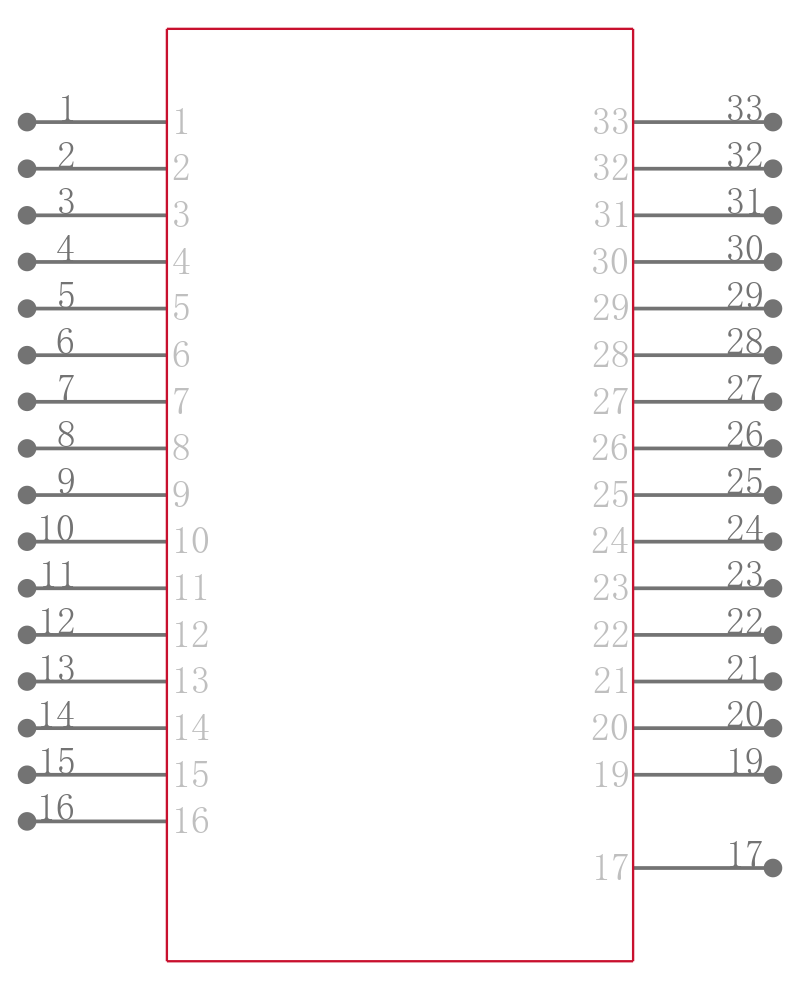

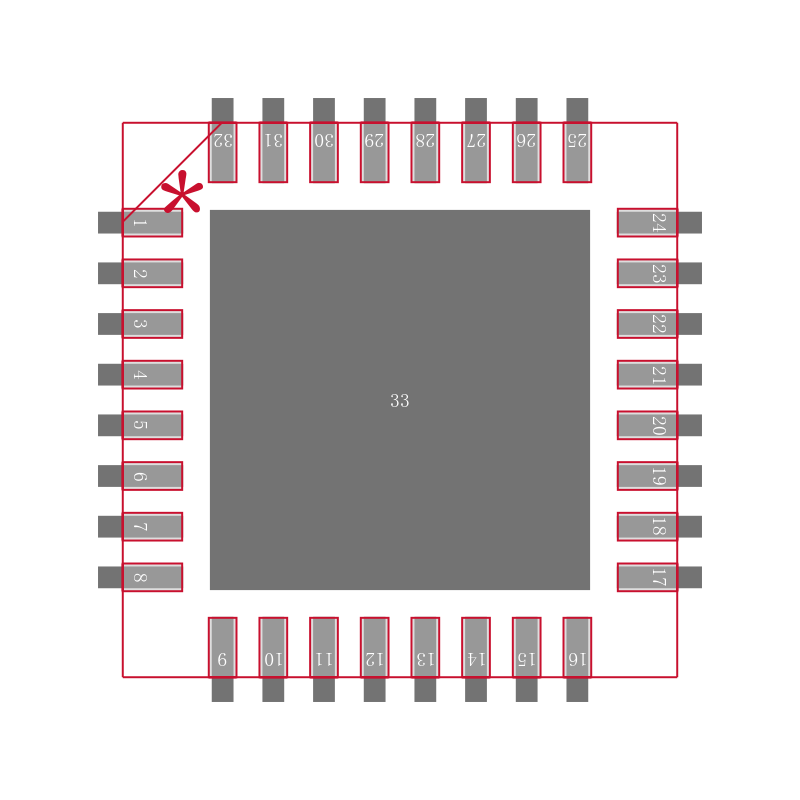

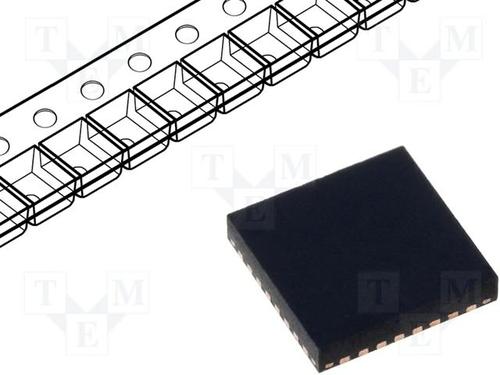

LPC1112FHN33/101

32位ARM Cortex -M0微控制器;高达32 KB的闪存和8 KB的SRAM 32-bit ARM Cortex-M0 microcontroller; up to 32 kB flash and 8 kB SRAM

Cortex-M0 based microcontrollers with industry-leading power and efficiency

Built around the new Cortex-M0 architecture, the smallest, lowest power, and most energy-efficient ARM core ever developed, these MCUs are ideally equipped for use in many traditional 8/16-bit applications.

Key features

► ARM Cortex-M0 processor

   - 50 MHz operation

   - Nested Vectored Interrupt Controller for fast deterministic interrupts

   - Wakeup Interrupt Controller allows automatic wake from a priority interrupt

   - Three reduced-power modes: Sleep, Deep-sleep, and Deep power-down

► Memories

   - Up to 128 KB Flash memory

   - Up to 16 KB SRAM

► Serial peripherals

   - UART with fractional baud rate generation, internal FIFO, and RS-485 support

   - Up to 2 SPI controllers with FIFO and multi-protocol capabilities

   - I2C-bus interface supporting full I2C-bus specification and Fast mode plus with a data rate of 1 Mbit/s with multiple address recognition and monitor mode

► Analogperipheral

   - 10-bit Analog-to-Digital Converter with eight channels and conversion rates up to 400 K samples per second

► Other:

   - Up to 42 general-purpose I/O GPIO pins with configurable pull-up/down resistors and a new, configurable open-drain operating mode

   - Four general-purpose counter/timers, with a total of four capture inputs and 13 match outputs

   - Programmable Watchdog Timer WDT with lock-out feature

   - System tick timer

   - Each peripheral has its own clock divider for power savings

Applications

► White goods

► e-Metering

► Consumer peripherals

► Remote sensors

► 8/16-bit applications

► Industrial networking

► System supervisors
