LPC2478-STK

MCU, MPU & DSP Development Tools DEV BRD FOR LPC2478 64Mb SDRAM 100Mbit

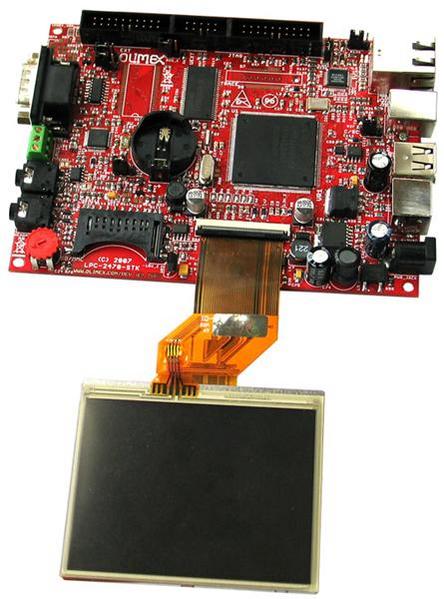

The LPC-2478STK is a starter kit which uses LPC2478 microcontroller, powered by the ARM7TDMI-S core,. This powerful MCU supports various serial interfaces such as USB host, USB device, UART, CAN, etc. The board also contains audio input and output as well as MP3 decoder, digital accelerometer, JTAG, Ethernet, touch screen TFT display and SD/MMC card connector. All this along with the ARM7TDMI-S architecture and uC Linux allow user to build a diversity of powerful applications to be used in a wide range of situations.

.

LPC2478 ARM7TDMI-S processor, running at up to 72MHz

.

512kB on chip flash program memory with in system programming ISP and IAP capabilities

.

MP3 decoder DSP + codec VS1002D

.

Three axis digital accelerometer with 11bit accuracy

.

CAN driver and connector

.

RS 232 with ICSP control

.

SD/MMC card connector

.

JTAG connector

.

PS2 keyboard connector

.

100Mbit Ethernet

The LPC-2478STK board is shipped in protective anti static packaging. The board must not be subject to high electrostatic potentials.
