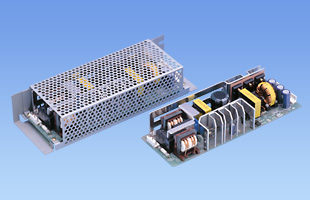

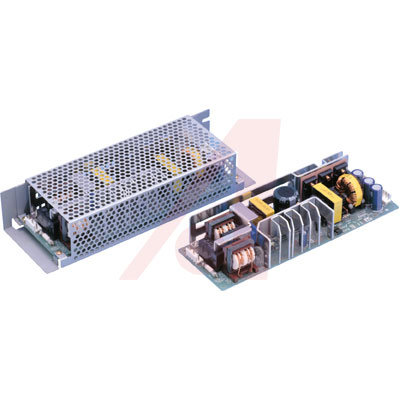

150 W 低成本 单输出 12 V 内部 AC/DC 开关电源
50/60 Hz Frequency, LEA Series Universal Input Switching Power Supplies
Designed for Small Size, Low Profile, High Reliability, Low Cost with Power Factor Correction.
* Active Method PFC 0.99 Power Factor Obtained
* Cost Effective, Small Open Frame PC Board Construction
* High Quality — Documented Field Failure Rate Less Than 0.012%
* Available with Chassis and Cover SN Option
* Available with ±10% Adjustable Output Potentiometer Y Option
* Fully Regulated, Fully Isolated Input/Output
* Inrush Current, Over-Voltage, Over-Current Protection Circuitry
* Remote On/Off Option R
* Conductive Noise — Complies with FCC-B, CISPR22-B EN55022-B, VCCI-B
* UL, CUL and TÜV Safety Approvals; CE Marked
* Two-Year Warranty
额定功率 150 W
输出接口数 1
输出电压 12 V
输出电流 12.5 A
输出功率 150 W
隔离电压 3 kV
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 12.5 A
输入电流Min 2 A
工作温度Max 60 ℃
工作温度Min -10 ℃
输入电压 85V ~ 264V
引脚数 20
长度 8.74 in
宽度 2.95 in
高度 37 mm
工作温度 -10℃ ~ 60℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE(商业)
RoHS标准 RoHS Compliant
含铅标准 PB free
