Power Supply; AC-DC; 24V; 6.3A; 85-132V In; Open Frame; Panel Mount; 151W; LDA Series

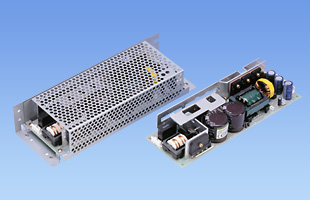

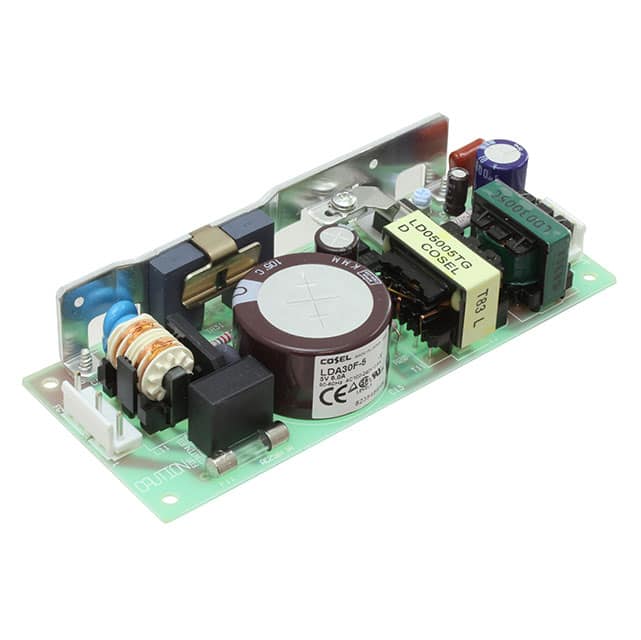

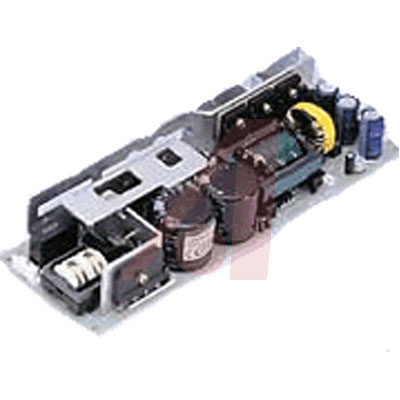

PC board type power supply of global input input voltage 62 models in 8 wattage range from 10-300w with 3-48V. Some models have peak output power.
* Features
* Rugged PCB type CEM3
* Input range
LDA10 - 75F AC85 - 264V
LDA100 - 300W AC85 - 132V/AC170 - 264V
Autoranging input
* Built-in inrush current limiting, overcurrent and overvoltage protection circuits
* Optional parts
Chassis and cover,Harness
* Safety agency approvals
* UL recognized, TÜV approved, CSA certified LDA10F - LDA150W
* UL60950-1, C-UL recognized, TÜV approved
* Complies with DEN-AN
* CE marking
* Low Voltage Directive
* Environment
* RoHS directive
* EMI
* Complies with FCC-B, CISPR22-B, EN55022-B, VCCI-B
* 2-year warranty
