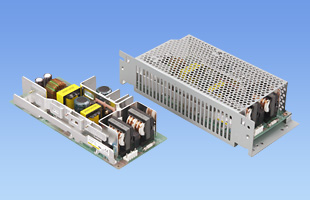

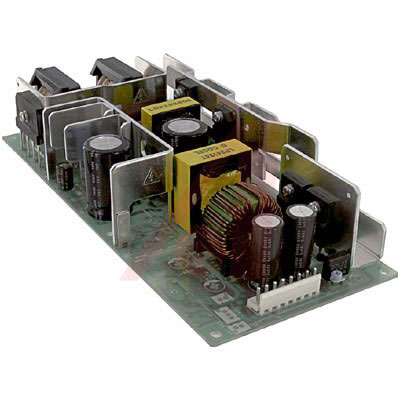

LEP240F 系列 240 W 单输出 24 V AC/DC 密封型 电源
50/60 Hz Frequency, LEP Series Universal Input Switching Power Supplies
Medium Power — With High Peak Capability.
* Designed for Motors, Printers, Fax, Medical and Lab Equipment Where Peak Power Is Required
* Power Factor Correction
* Output Voltages Cover 21.6~52.8 VDC Range
* Universal Input: 85~264 Volts AC
* Peak Power: 68~100% of Nominal Current
* Additional 3- and 4- Channel Outputs Available — ZTS3 and ZTW3 Mounting
* Chassis and Cover, Remote On/Off Options
* Over-Voltage, Over-Current, Thermal and Peak Current Protection
* EMI-FCC Class B
* UL, C-UL, TÜV Safety Approvals and CE
* Two-Year Warranty
额定功率 240 W
输出接口数 1
输出电压 24 V
输出电流 10 A
输出功率 240 W
输入电压DC Max 370 V
输入电压DC Min 120 V
输入电压AC Max 264 V
输入电压AC Min 85 V
输出电流Max 10 A
输入电流Min 3.3 A
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压 85V ~ 264V
安装方式 Through Hole
引脚数 11
长度 222 mm
宽度 95 mm
高度 42 mm
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 PB free
