LCM600W-T-4-A

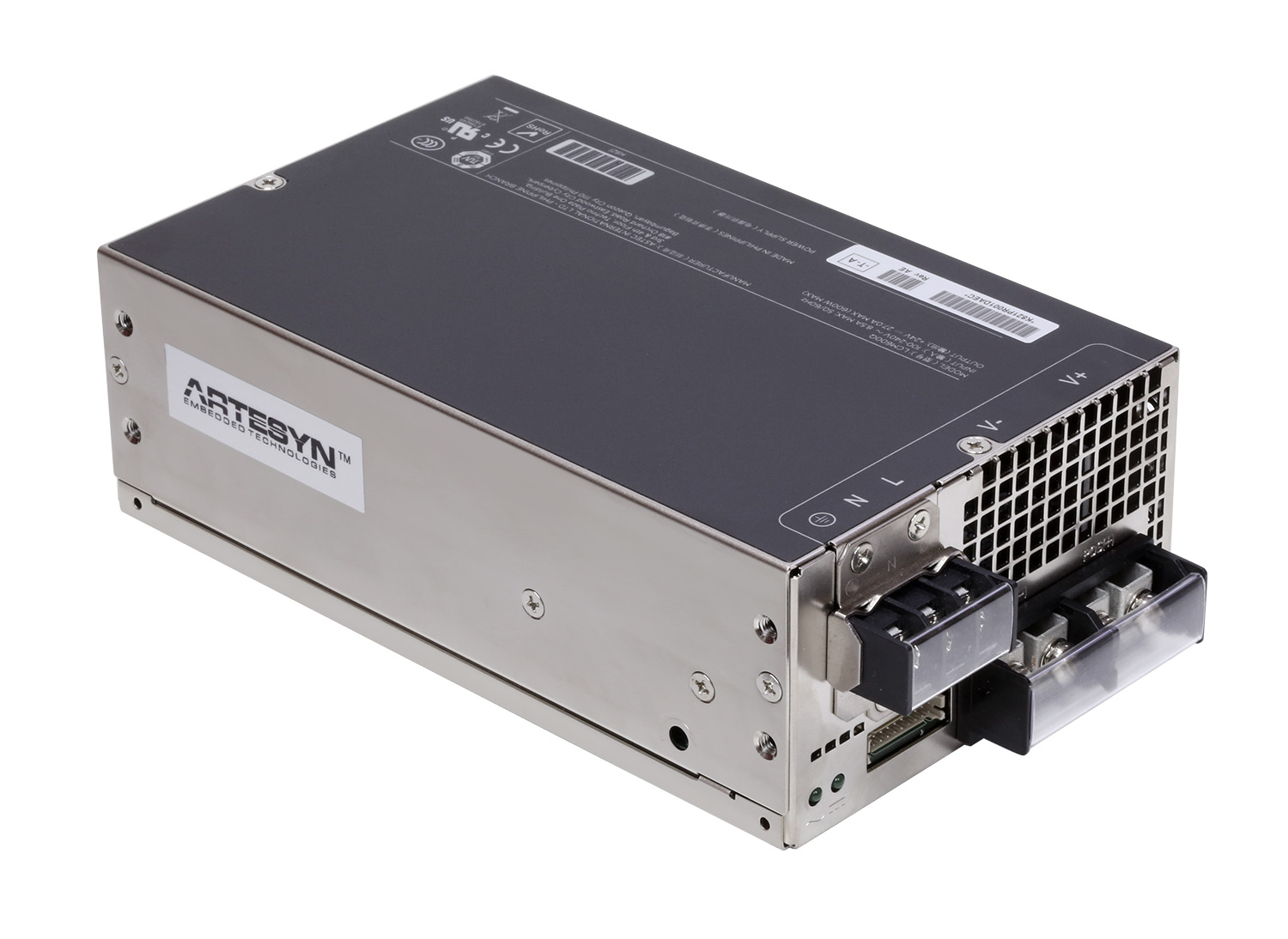

LCM600W-T-4-A图片1
LCM600W-T-4-A图片2
LCM600W-T-4-A图片3
LCM600W-T-4-A图片4
LCM600W-T-4-A图片5
LCM600W-T-4-A图片6

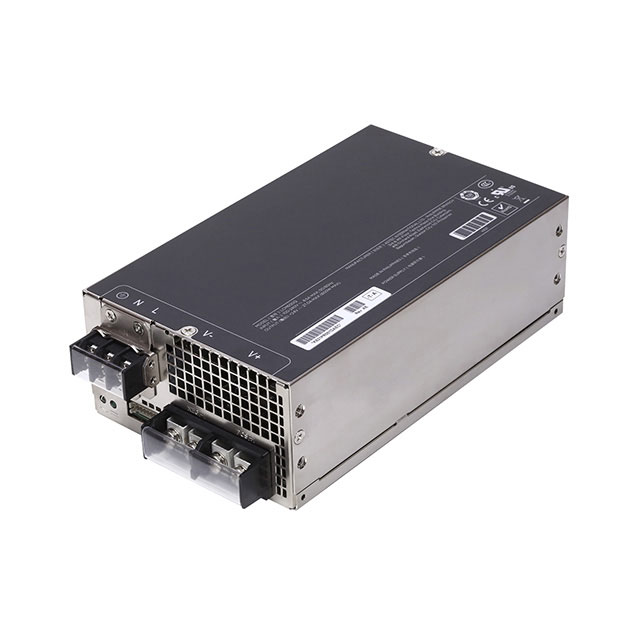

LCM600W-T-4-A图片7
LCM600W-T-4-A图片8
LCM600W-T-4-A概述

AC-DC Power Supply Single-OUT 48V 14A 600W

Your electronic devices will need this AC to DC power supply from Artesyn Embedded Power to convert alternating currents into useful direct currents to operate. It has a voltage of 48 V and maximum output power of 600 W. This part"s single output can handle a current up to 14 A. This part has a minimum operating temperature of -40 °C and a maximum of 70 °C.


得捷:
AC/DC CONVERTER 48V 600W


艾睿:
Your electronic devices will need this LCM600W-T-4-A AC to DC power supply from Artesyn Embedded Power to convert alternating currents into useful direct currents to operate. It has a voltage of 48 V and maximum output power of 600 W. This part&s;s single output can handle a current up to 14 A. This part has a minimum operating temperature of -40 °C and a maximum of 70 °C.


Chip1Stop:
48V @ 600W Bulk Front End, 2.4 x 4.5 x 7.5; TB Input; 5Vsb; New aesthetics


Verical:
AC/DC Power Supply Single-OUT 48V 14A 600W


LCM600W-T-4-A中文资料参数规格
技术参数

额定功率 600 W

输出接口数 1

输出电压 48 V

输出电流 14 A

输出功率 600 W

隔离电压 4 kV

输入电压AC Max 264 V

输入电压AC Min 85 V

输出电流Max 14 A

输入电流Min 8 Arms

输出功率Max 600 W

工作温度Max 70 ℃

工作温度Min -40 ℃

输入电压 85VAC ~ 264VAC

封装参数

安装方式 Chassis

外形尺寸

长度 190.5 mm

宽度 114.3 mm

高度 61 mm

物理参数

工作温度 -40℃ ~ 70℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买LCM600W-T-4-A
型号: LCM600W-T-4-A
描述:AC-DC Power Supply Single-OUT 48V 14A 600W
