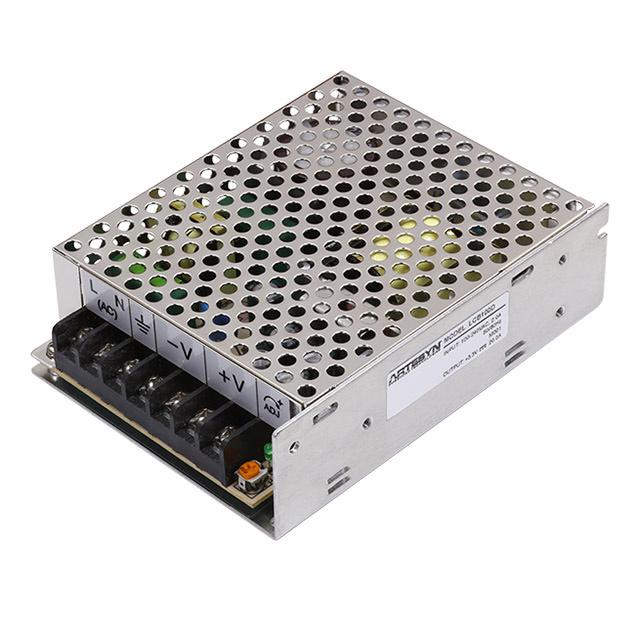

ARTESYN EMBEDDED TECHNOLOGIES LCB100L AC-DC Enclosed Power Supply, Adjustable, Fixed, 1Outputs, 88V, 264V, 102W, 12V
Your electronic devices will need this AC to DC power supply from Artesyn Embedded Power to convert alternating currents into useful direct currents to operate. It has a voltage of 12 V and maximum output power of 102 W. This part"s single output can handle a current up to 8.5 A. This part has a minimum operating temperature of -25 °C and a maximum of 70 °C.
得捷:
AC/DC CONVERTER 12V 100W
艾睿:
AC/DC Power Supply Single-OUT 12V 8.5A 102W 5-Pin
安富利:
12V @ 102W, 3.86" X 1.5" X 5.1"
Verical:
AC/DC Power Supply Single-OUT 12V 8.5A 102W 5-Pin
Newark:
# ARTESYN EMBEDDED TECHNOLOGIES LCB100L AC/DC Enclosed Power Supply, Adjustable, Fixed, 1 Outputs, 88 V, 264 V, 102 W, 12 V
额定功率 100 W
输出接口数 1
输出电压 12 V
输出电流 8.5 A
输出功率 102 W
隔离电压 3 kV
输入电压DC Max 373 V
输入电压DC Min 125 V
输入电压AC Max 264 v
输入电压AC Min 88 v
输出电流Max 8.5 A
输入电流Min 2.5 A
输出功率Max 102 W
工作温度Max 70 ℃
工作温度Min -25 ℃
输入电压 88VAC ~ 264VAC
安装方式 Chassis
引脚数 5
高度 37.5 mm
工作温度 -25℃ ~ 70℃
产品生命周期 Obsolete
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
